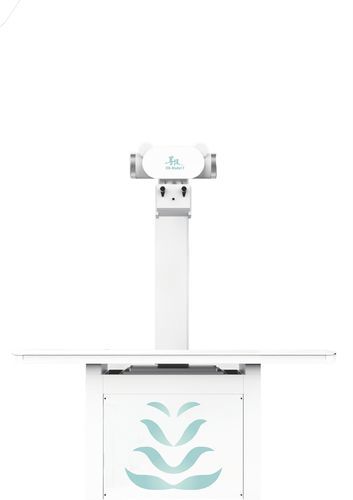

Digital veterinary X-ray system Model T

with table

Product Overview
Model T is a veterinary digital radiography system engineered for veterinary clinics and imaging centers. It integrates a 17" flat panel detector, a 32 kW high-voltage generator and a Canon X-ray tube to provide high-resolution radiographs with straightforward clinical operation.

• 17" flat panel detector — Scintillator: CsI & a‑Si; Pixel pitch 139 μm; 3072 × 3072 pixels; Active area 427 × 427 mm
• High-voltage generator: Output power 32 kW; Max voltage 125 kV; Max current 400 mA
• Canon X-ray tube — Nominal focal spot 1.0 mm / 2.0 mm; Anode heat content 140 kHU
• Fixed HPL table board 1400 mm × 600 mm; overall footprint adapted to clinic environments
• Imaging and processing software tailored for veterinary workflows
• Designed for reliable daily use and simplified operation for clinical staff

Product Dimensions
1400 × 720 × 1860 mm

Technical Specifications

• Detector: Flat panel, Scintillator CsI & a‑Si
• Pixel Pitch: 139 μm
• Number of Pixels: 3072 × 3072
• Active Area: 17" × 17" (427 × 427 mm)
• High-voltage generator: Output Power 32 kW; Maximum kV 125 kV; Maximum mA 400 mA
• X-ray tube: Canon; Nominal focal spot value 1.0 mm / 2.0 mm; Anode heat content 140 kHU
• Table board: Fixed, HPL, 1400 mm × 600 mm
• Software: Imaging and processing suite for veterinarians
• Product dimensions (L × W × H): 1400 × 720 × 1860 mm
