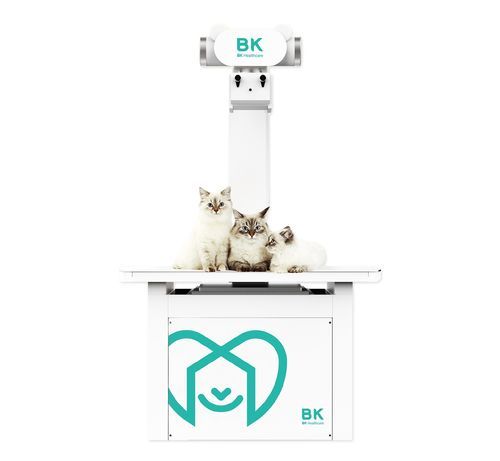

Digital veterinary X-ray system Model 3 Evo

with table

Overview
Model 3 Evo is a veterinary digital radiography (DR) system designed for diagnostic imaging of small to medium-sized patients. It integrates a 17×17 in cesium iodide (CsI) amorphous silicon flat panel detector and a Canon X-ray tube to support a wide range of clinical exams.

Key Features

• Flat panel detector: iRay Venu 1717XV — CsI a-Si, 17×17 in, 139 μm pixel, 2912×2912 matrix, 16-bit A/D
• High-voltage generator: 220 V supply, 50 kW power rating, up to 150 kV and 630 mA
• X-ray tube: Canon E7843X — focal spot 0.6/1.2 mm, anode heat capacity 150 kHU
• Real-time collimator with object thickness display to assist exposure settings
• Veterinary exam table: high-grade compact laminate surface, 4-way motion (Lateral ±300 mm, Longitudinal ±130 mm), surface 1200×600 mm, load capacity ≤150 kg
• 23.8″ high-definition monitor for image review

Technical Specifications

• Detector: iRay Venu 1717XV — Imaging size 17×17 in; Pixel size 139 μm; Matrix 2912×2912; Spatial resolution 3.6 lp/mm; 16-bit A/D
• Generator: Power supply 220 V; Power rating 50 kW; Maximum 150 kV; Maximum 630 mA
• X-ray Tube: Canon E7843X — Focal spot 0.6/1.2 mm; Anode heat capacity 150 kHU; Focal spot power 50 kW (large) / 22 kW (small) @60 Hz
• Collimator: Real-time object thickness display
• Exam Table: Surface material high-grade compact laminate; Movement Lateral ±300 mm, Longitudinal ±130 mm; Dimensions 1200×600 mm; Load capacity ≤150 kg
• Monitor: 23.8 in high-definition display

Applications

• General veterinary radiography (thorax, abdomen, musculoskeletal)
• Orthopedic evaluations and fracture assessment
• Clinical workflows requiring rapid digital acquisition and on-site image review

Package Contents

• Flat panel detector: iRay Venu 1717XV
• High-voltage generator (220 V, 50 kW)
• Canon E7843X X-ray tube
• Real-time collimator
• Veterinary exam table (1200×600 mm)
• 23.8″ monitor
