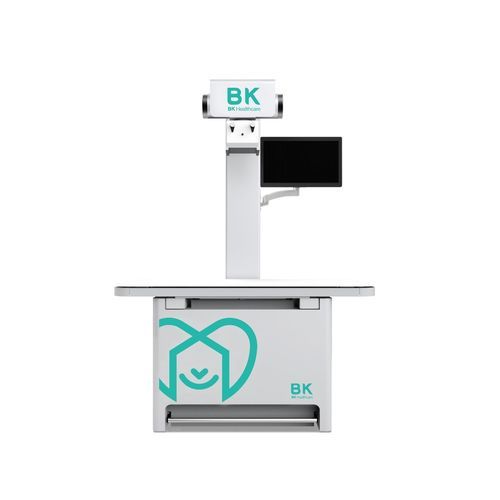

Digital veterinary X-ray system Model Y Evo

with table

Features

• Power upgraded to 50kW for stronger penetration
• Updated collimator with automatic body thickness measurement function
• X-ray tube: Siemens Ray-12 with smaller focal spot options
• Radiation protection improvements to reduce leakage and enhance safety
• Side touch display upgraded for improved workflow
• Veterinary-specific exam table with 4-way motion and wear-resistant surface

Technical Parameters
Flat Panel Detector - iRay Venu 1717XV
Detector Technology: Cesium Iodide (CsI) on amorphous silicon (a-Si)
Imaging Size: 17×17 inches
Pixel Size: 139 μm
Pixel Matrix: 2912×2912
A/D Conversion: 16-bit
Spatial Resolution: 3.6 lp/mm

Static High Voltage Generator
Power Supply Voltage: 220 V
Power Rating: 50 kW
Maximum Voltage: 150 kV
Maximum Current: 630 mA
Generator Function: Real-time voltage display

X-ray Tube - Siemens Ray-12
Focal Spot Size: 0.6 / 1.2 mm (small / large focal spot)
Tube Anode Heat Capacity: 230 kHU
Focal Spot Power: 54 kW (large), 22 kW (small) @ 50 Hz

Collimator: Real-time object thickness display

Veterinary Exam Table
Table Surface Material: High-grade compact laminate (wear-, scratch- and water-resistant)
Table Movement: 4-way (Lateral ±300 mm, Longitudinal ±130 mm)
Table Surface Dimensions: 1400 mm × 720 mm
Table Load Capacity: ≤150 kg

Monitor: 27 inches
Touchscreen: 21.5 inches

Technical Specifications

• Detector: iRay Venu 1717XV, Cesium Iodide (CsI) on a-Si
• Imaging size: 17×17 inches
• Pixel size: 139 μm
• Pixel matrix: 2912×2912
• A/D conversion: 16-bit
• Spatial resolution: 3.6 lp/mm
• Power supply voltage: 220 V
• Power rating: 50 kW
• Maximum voltage (kV): 150 kV
• Maximum current (mA): 630 mA
• Generator function: Real-time voltage display
• X-ray tube: Siemens Ray-12
• Focal spot sizes: 0.6 / 1.2 mm (small / large)
• Tube anode heat capacity: 230 kHU
• Focal spot power: 54 kW (large), 22 kW (small) @ 50 Hz
• Collimator: Real-time object thickness display
• Exam table material: High-grade compact laminate (wear/scratch/water resistant)
• Table movement: 4-way (Lateral ±300 mm, Longitudinal ±130 mm)
• Table dimensions: 1400 mm × 720 mm
• Table load capacity: ≤150 kg
• Monitor: 27 inches
• Touchscreen: 21.5 inches
