Scientific research water bath БК-В series

heatingthermostaticmicroprocessor-controlled

Introduction

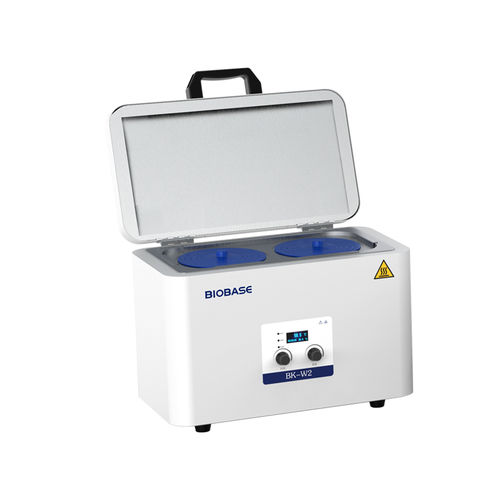

The water bath is a laboratory device for heating samples to a constant temperature via a water bath.

Features

• All-round heating with rapid temperature rise and stable temperature control for accurate experiments.
• OLED display shows temperature, time and parameters in real time.
• Intelligent algorithm with dry-run/water-shortage protection; heating stops if water is insufficient; working time is programmable.
• Lid adaptable to containers of various sizes; compatible with optional tube racks.

Technical Parameters
Model: BK-W2 | BK-W4 | BK-W6
Capacity: 5L | 10L | 20L
Chamber: Stainless steel
Temp. Range: RT ~ 100℃
Temp. Fluctuation: ±0.5℃
Display: OLED
Timing: Yes
Power consumption: 600W | 1000W | 1500W
Power supply: AC220V, 50/60Hz (standard); AC110V, 50/60Hz (optional)
Internal size (W*D*H): 300*150*150mm | 325*300*145mm | 505*300*150mm
External size (W*D*H): 385*280*275mm | 385*420*275mm | 570*420*275mm
Net weight: 6.15kg | 7.85kg | 11.3kg
Packing size (W*D*H): 444*294*324mm | 444*444*324mm | 634*444*324mm
Gross weight: 7.8kg | 10.5kg | 13.6kg

Optional Tube Rack
Model: BK-W2 | BK-W4 | BK-W6
Max number / tube size counts:
Φ13mm*40: 1 | 3 | 5
Φ14mm*40: 1 | 3 | 5
Φ16mm*40: 1 | 3 | 4
Φ17mm*40: 1 | 3 | 4
Φ19mm*30: 1 | 3 | 5
Φ19mm*40: 1 | 2 | 4
Φ19mm*50: 1 | 2 | 3
Φ21mm*12: 1 | 4 | 7
Φ21mm*40: 1 | 2 | 4
Φ21mm*50: / | 2 | 3
Φ23mm*12: 1 | 4 | 7
Φ23mm*40: / | 2 | 2
Φ25mm*40: / | / | 2
Φ27mm*12: 1 | 3 | 6
Φ27mm*40: / | / | 2
Φ30mm*12: 1 | 3 | 5
Φ30mm*24: / | 2 | 2
Φ30mm*40: / | / | 1
Φ32mm*12: 1 | 3 | 5
Φ32mm*24: / | / | 2

Characteristics / Technical specifications

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model / Series: BK-W2, BK-W4, BK-W6 (BK-W series)
• Capacity options: 5 L, 10 L, 20 L
• Chamber material: Stainless steel
• Temperature range: Room temperature to 100℃
• Temperature fluctuation: ±0.5℃
• Display type: OLED (real time temperature and time)
• Timing function: Yes
• Safety: Intelligent algorithm with dry-run/water-shortage protection
• Power consumption by model: 600W (BK-W2), 1000W (BK-W4), 1500W (BK-W6)
• Power supply: AC220V, 50/60Hz standard; AC110V optional
• Dimensions, weights and packing details: see technical parameters above
