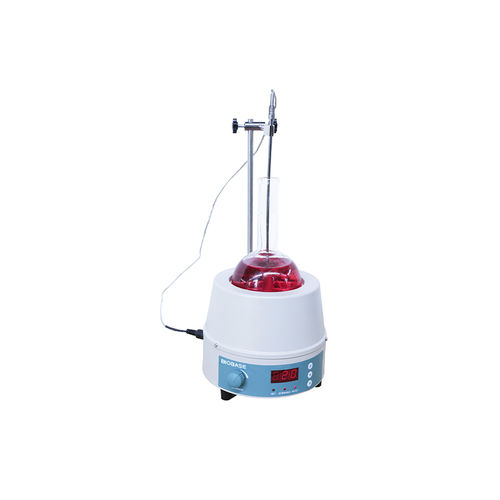

Digital heating mantle HME-IIB

with magnetic stirrermultiple-volumelarge-volume

Product Name
Magnetic Stirring Heating Mantles HME-IIB / HME-IIIB (Electronic & Digital) — capacities 50–20000 ml

Introduction
The HME-IIB / HME-IIIB magnetic stirring heating mantle combines heating and magnetic stirring with electronic/digital control to support continuous laboratory processes and sample preparation across chemical and industrial labs.

Product details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: HME-IIB / HME-IIIB

Key features

• Electronic temperature regulation, stepless control
• Cold‑rolled steel housing with sprayed surface
• Thermal insulation: high‑quality aluminum silicate cotton
• PID digital temperature controller and PT100 sensor available on HME-IIIB variant
• Stirring speed range 0–1600 rpm; continuous operation
• Multiple capacity options from 50 ml to 20000 ml
• Standard power supply 200–240V 50/60Hz; optional 110V 50/60Hz

Technical specifications
Model: HME-IIB / HME-IIIB (LED display)
Capacity (ml): 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000
Max. temperature: 450℃; Temperature control range: RT+20 ~ 250℃
Speed: 0–1600 rpm; Working time: Continuous
Motor power: 0.01 kW
Heating power (kW) by capacity: 50:0.08 | 100:0.10 | 250:0.15 | 500:0.25 | 1000:0.35 | 2000:0.45 | 3000:0.60 | 5000:0.80 | 10000:1.20 | 20000:2.50
Power supply: Standard 200–240V 50/60Hz; Optional 110V 50/60Hz
External size (mm) by capacity: 50–500 ml: Φ200×165; 1000 ml: Φ280×220; 2000 ml: Φ330×230; 3000 ml: Φ340×245; 5000 ml: Φ350×250; 10000 ml: Φ425×320; 20000 ml: Φ470×340
Package size (mm) by capacity: 50–500 ml: 230×230×195; 1000 ml: 290×290×300; 2000 ml: 340×340×350; 3000 ml: 360×360×300; 5000 ml: 390×390×310; 10000 ml: 430×430×350; 20000 ml: 510×510×380
Net weight (kg) by capacity: 50/100/250/500 ml: 2.5; 1000 ml: 5.5; 2000 ml: 6.5; 3000 ml: 7.5; 5000 ml: 8; 10000 ml: 9.8; 20000 ml: 16
Gross weight (kg) by capacity: 50/100/250/500 ml: 2.8; 1000 ml: 6; 2000 ml: 7; 3000 ml: 8; 5000 ml: 9.2; 10000 ml: 12; 20000 ml: 20
