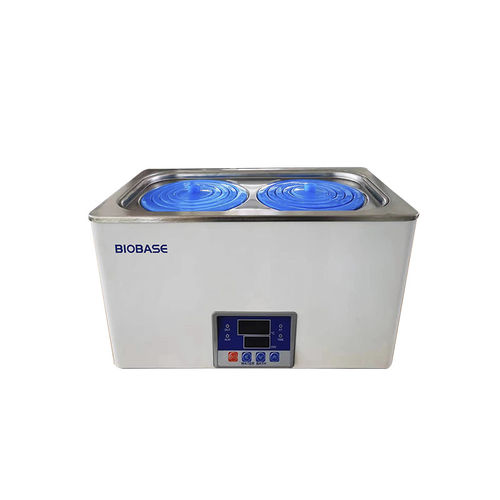

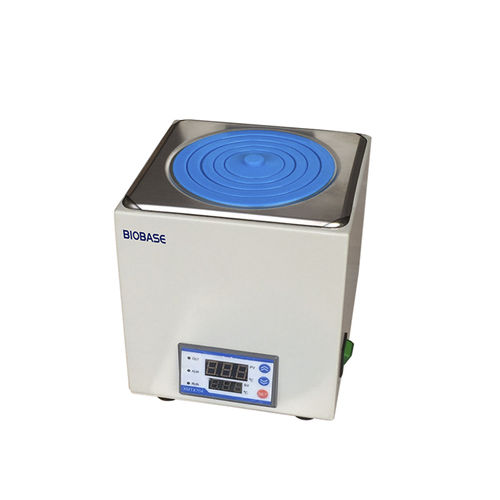

Thermostatic water bath SY Series

microprocessor-controlledbenchtopstainless steel

Overview

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply

Key features

• Stainless steel inner chamber and upper cover designed to resist corrosion
• New structural design to minimize steam leakage
• PID microprocessor controller with LED display for precise temperature control
• Universal fixture available for SY-1L4H and SY-1L6H

Models and key parameters
Models: SY-1L1H | SY-1L2H | SY-1L4H | SY-1L6H | SY-2L4H | SY-2L6H | SY-2L8H
Capacity (L): 3 | 6 | 13 | 20 | 11 | 18 | 23
Temp. range: RT.-100℃ (all models)
Temp. fluctuation: ±0.5℃
Temp. accuracy: ≤±1℃
Time range: 0~999 min
Power (W): 300 | 500 | 1000 | 1500 | 1000 | 1500 | 2000
Voltage: AC110/220V ±10%, 50/60Hz
Internal size (mm): 140×150×150 | 300×150×150 | 600×180×120 | 900×180×120 | 320×300×150 | 500×300×150 | 620×320×120
External size (mm): 270×180×190 | 320×180×210 | 770×310×170 | 1100×310×170 | 340×320×210 | 500×320×210 | 750×360×160
Packing size (mm): 320×230×220 | 410×220×310 | 820×330×250 | 1150×330×250 | 410×390×310 | 590×390×310 | 830×460×250
Net weight (kg): 2 | 4 | 10 | 13 | 6.5 | 9 | 12
Gross weight (kg): 3 | 5 | 11 | 14.5 | 7.5 | 10 | 13

Technical specifications

• Control: PID microprocessor controller with LED display
• Temperature performance: room temperature to 100℃; fluctuation ±0.5℃; accuracy ≤±1℃
• Timer: 0–999 minutes
• Power and capacity vary by model (3–23 L)
• Voltage: AC110/220V ±10%, 50/60Hz
• Construction: stainless steel inner chamber and upper cover; designed to reduce steam leakage
