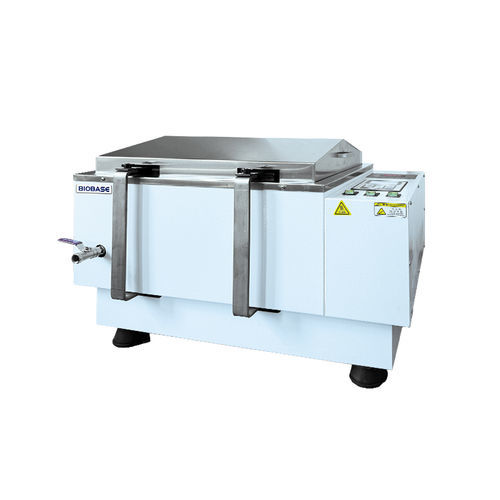

Ultrasonic laboratory bath SHZ-S10

compactultrasonicautomatic

Introduction
The SHZ-S10 Ultrasonic Thermostatic Shaking Water Bath integrates ultrasonic cavitation, precise temperature control and variable orbital shaking in a compact laboratory unit. It is designed for controlled sample processing, sonication-assisted cleaning and temperature-dependent reactions where combined ultrasonic and shaking action improves process uniformity and throughput.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: SHZ-S10

Features

• Over-temperature alarm and protections for over-voltage, over-current and output short-circuit to support safe operation in continuous processes.
• Stepless speed regulation (40–300 rpm) for fine adjustment of orbital motion to match process requirements.
• High-Q ultrasonic transducers with a dedicated generator provide stable 40 kHz output and effective cavitation for cleaning and sample treatment.
• Automatic frequency tracking maintains acoustic coupling and efficiency under changing load or liquid conditions.

Technical parameters
Model: SHZ-S10
Shaking Amplitude: 20 mm
Shaking Method: Reciprocation (orbital)
Display: LCD display
Speed Range: 40~300 rpm
Temperature Range: RT+5~100℃
Temperature Resolution: 0.1℃
Temperature Fluctuation: ≤±0.5℃
Temperature Uniformity: ≤±1℃ (@37℃)
Ultrasonic Frequency: 40 kHz
Time Range: 1~9999 min/h or continuous
Tray Size: 300×400 mm
Power Supply: AC220V, 50/60Hz (Standard); AC110V, 60Hz (Optional, external transformer)
Ultrasonic Consumption: 600 W
Heating Consumption: 1500 W
Total Consumption: ≤2100 W
Internal Size (W×D×H): 490×390×170 mm
External Size (W×D×H): 700×550×490 mm
Net Weight: 45 kg
Packing Size (W×D×H): 800×620×700 mm
Gross Weight: 58 kg

Technical specifications

• Model: SHZ-S10
• Shaking Amplitude: 20 mm
• Shaking Method: Reciprocation (orbital)
• Display: LCD display
• Speed Range: 40–300 rpm
• Temperature Range: RT+5~100℃
• Temperature Resolution: 0.1℃
• Temperature Fluctuation: ≤±0.5℃
• Temperature Uniformity: ≤±1℃ (@37℃)
• Ultrasonic Frequency: 40 kHz
• Time Range: 1–9999 min/h or continuous
• Tray Size: 300×400 mm
• Power Supply: AC220V, 50/60Hz (Standard); AC110V, 60Hz (Optional)
• Ultrasonic Consumption: 600 W
• Heating Consumption: 1500 W
• Total Consumption: ≤2100 W
• Internal Size (W×D×H): 490×390×170 mm
• External Size (W×D×H): 700×550×490 mm
• Net Weight: 45 kg
