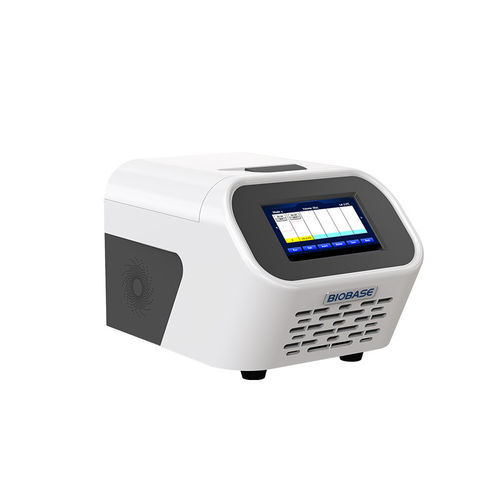

Gradient thermal cycler TEC01

96-wellfor genotypingfor molecular diagnostic

Overview
Brand: BIOBASE
Origin: China
Models: TEC01, TEC03
Suitable for clinical diagnostics and research PCR workflows in hospitals, diagnostic laboratories and research institutions.

Key features

• Precise temperature control with high‑performance DSP and reliable heating/cooling elements.
• Temperature accuracy and uniformity ±0.3℃; display resolution 0.1℃.
• Fast heating and cooling (up to 7.7℃/s heating; up to 4.6℃/s cooling depending on model).
• Gradient capability for optimized assay development; aluminum block for consistent thermal transfer.
• Color touchscreen interface (7" for TEC01, 10.1" for TEC03) and large program storage.

Technical specifications

• Models: TEC01 (96 wells) / TEC03 (3×32)
• Reaction volume: 10–200 μl
• Tube formats: 96×0.2 ml plate; 8×0.2 ml strips; 0.2 ml single tubes (model dependent)
• Block temperature range: 4–105℃; Heat lid: 30–110℃
• Max heating rate: TEC01 4.0℃/s; TEC03 7.7℃/s. Max cooling rate: TEC01 3℃/s; TEC03 4.6℃/s.
• Gradient range: TEC01 30–99℃; TEC03 30–105℃. Temperature differential ranges per model as specified.
• Program capability: TEC01 up to 30 steps / 99 cycles; TEC03 up to 99+ steps / 120 cycles.
• Display: 7" LCD (TEC01) / 10.1" LCD (TEC03). Power: AC 110–220V, 50/60Hz.
• Dimensions, net/gross weights and packaging data available per model.

Applications

• Clinical PCR assays and diagnostic workflows
• Molecular biology research and academic laboratories
• Pathogen detection, genetic testing and assay development

Supply & support

• Factory direct supply; typical lead time within 7 days (confirm at order).
• Packaging and shipping details vary by model; contact supplier for quotations, spare parts and after‑sales support.
