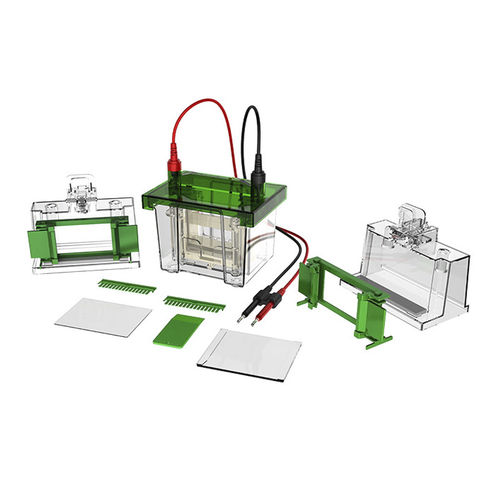

Agarose gel electrophoresis chamber БК-ВЕТ01

polyacrylamide gelPAGEfor DNA

Basic information
Brand: BIOBASE
Model: BK-VET01
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply

Application
Vertical electrophoresis for separation, purification and preparation of nucleic acid and protein samples in life science and clinical research.

Key features

• High-transparency polycarbonate injection-molded tank for clear observation.
• Integrated glass cushion strip design to prevent gel leakage.
• Dedicated gel-casting rack simplifies and secures gel preparation.
• Automatic power cut when the cover is opened to protect the operator.
• Upper-cover limit prevents incorrect electrode polarity connection.
• Supports simultaneous double-gel casting with aligned bands.
• 99.99% high-purity platinum electrodes for high conductivity and corrosion resistance.
• Recommended power supplies: BEP-300I, BEP-600I, BEP-600D.

Technical parameters

• Model: BK-VET01
• Glass tray (W×L): Thick: 101×83 mm; Thin: 101×73 mm
• Gel trays (W×L): Hand-cast: 83×73 mm; Precast: 86×68 mm
• Comb thickness: Standard 1.0 mm; Optional 1.5 mm
• Comb throughput: 10 or 15 wells
• Amount of gel per run: 1–2 pieces
• Number of samples capacity: 10–30 samples
• Buffer volume: 700 ml
• External size (L×W×H): 150×120×130 mm
• Package size (L×W×H): 400×350×300 mm
• Gross weight: 2.7 kg

Standard accessories

• Body tank ×1
• Cap ×1
• Electrode core set ×1
• Gel casting base ×2
• Gel frames ×2
• Single gel baffle ×1
• Gel spatula ×1
• Glass plates 5 pairs (1.0 mm thickness) ×1 set
• 10-well comb 1.0 mm ×2
• 15-well comb 1.0 mm ×2
