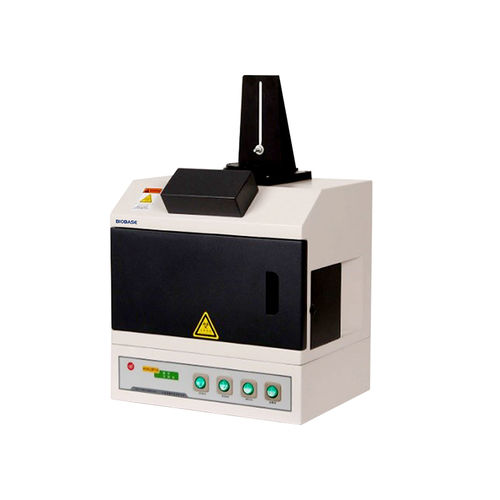

Electrophoresis transilluminator BK-UA2

gel electrophoresisfor gel documentation systemslaboratory

Basic information
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: BK-UA2

Function overview
The BK-UA2 UV transilluminator is designed for fluorescence detection and gel visualization in laboratory workflows, enabling observation and documentation of nucleic acid and protein stains under ultraviolet excitation.

Features

• Fixed camera port rack compatible with most SLR cameras for imaging and documentation.
• Anti-ultraviolet observation window filtering 99% of UV to allow real-time, safer observation of samples.
• Nano medical UV lamps (10 × 6W) providing an ultraviolet intensity of approximately 20 μW/cm² at 20 cm from the sample, compliant with measurement standards.

Technical Parameters
Model: BK-UA2
UV Lamp: 6W × 10 pcs
Reflection Wavelengths: 254 nm, 365 nm
Transmission Wavelength: 302 nm
Visible Light Output: 60 W
Reflective Filter Size: 200 × 80 mm
Transmission Filter Size: 200 × 150 mm
UV Intensity: ~20 μW/cm² at 20 cm from sample
Power Supply: 220 V, 50 Hz
Packing Size: 480 × 395 × 535 mm
Gross Weight: 7 kg

Technical specifications

• Model: BK-UA2
• UV lamps: 6W × 10 pcs
• Reflection wavelengths: 254 nm, 365 nm
• Transmission wavelength: 302 nm
• Visible light: 60 W
• Reflective filter size: 200 × 80 mm
• Transmission filter size: 200 × 150 mm
• UV intensity (20 cm): ~20 μW/cm²
• Power supply: 220 V, 50 Hz
• Packing size: 480 × 395 × 535 mm
• Gross weight: 7 kg
