Western blot blotting tank BK-TET01

Product Overview

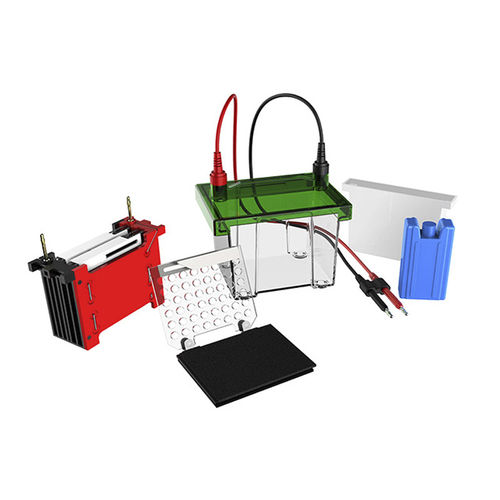

The BIOBASE Western blot electrophoresis transfer tank BK-TET01 is a professional device for vertical electrophoretic separation and transfer of proteins, suitable for SDS-PAGE to membrane transfer in laboratory and clinical research workflows.

Key Features

• Positive electrodes gathered at 4 cm to generate a concentrated electric field for efficient protein transfer; optional built-in or blue crystal ice box to absorb heat during transfer.
• Compatible with vertical electrophoresis units BK-VET01 and BK-VET02.
• Highly flexible cable and automatic power-off when the cover is opened for operator safety.
• Replaceable electrode head for simplified maintenance.
• 99.99% high-purity platinum electrodes for optimal conductivity, corrosion and aging resistance.
• Recommended power supplies: BEP-300I, BEP-600I, BEP-600D.

Technical Parameters

• Model: BK-TET01
• Transfer Gel Area (W×L): 110×90 mm
• Buffer Volume: 700 ml
• External Size (L×W×H): 150×120×130 mm
• Package Size (L×W×H): 290×290×200 mm
• Gross Weight: 1.3 kg
• Electrodes: 99.99% high-purity platinum

Standard Accessories

• Body tank ×1
• Cap ×1
• Transfer core set ×1
• Transfer clip ×2
• Sponge cushion ×4
• Ice box ×1
