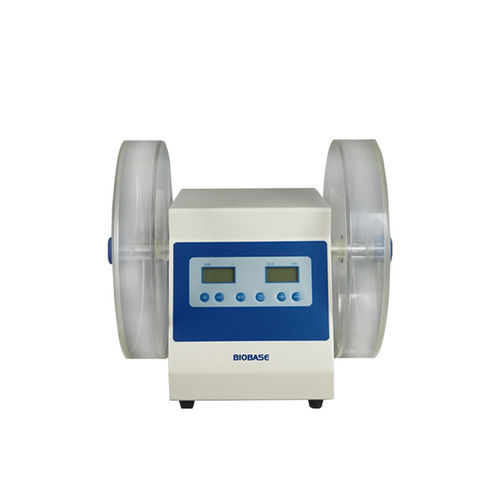

Friability tester TFT series

laboratoryfor the pharmaceutical industryfor tablets

Introduction
The Tablet Friability Tester is a laboratory instrument for pharmaceutical quality control that evaluates tablet durability by measuring chipping, crumbling or breakage under controlled mechanical stress. It is suitable for routine QC and formulation development in pharmaceutical production environments.

Product details
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Models available: TFT-1, TFT-2, TFT-3, TFT-4

Features

• Automation: auto-test, auto-diagnose, auto-alarm for reproducible QC cycles.
• Intelligent control of cylinder rotating speed and revolution count for precise test settings.
• Single-cylinder synchronized run and automatic stop at timing point (TFT-4 only).
• Available in single-path and double-cylinder configurations; synchronous operation with automatic stop.
• Drum revolutions can be preset; preset or actual values displayed on the LCD.
• Microprocessor control ensures high accuracy for rotary speed and rotation count measurements.

Technical parameters (table)
Model | TFT-1 | TFT-2 | TFT-3 | TFT-4
Cylinder Number | 2 | 2 | 2 | 1
Cylinder Radius | φ286 (all models)
Cylinder Depth | 39 mm (all models)
Tablet Fall Height | 156 mm (all models)
Rotating Speed | TFT-1: 20~100 rpm; TFT-2/TFT-3: 25 rpm (preset); TFT-4: 20~100 rpm
Rotation Count | TFT-1: 5~900 turns; TFT-2: 100 turns; TFT-3: 5~900 turns; TFT-4: 10~900 turns
Power Consumption | TFT-1: 40 W; TFT-2/TFT-3: 20 W; TFT-4: 50 W
Power Supply | AC110/220V ±10%, 50/60Hz
External Size (W*D*H) mm | TFT-1/2/3: 370*300*340; TFT-4: 300*200*340
Package Size (W*D*H) mm | TFT-1/2/3: 450*410*535; TFT-4: 420*315*435
Gross Weight (kg) | TFT-1/2/3: 12 kg; TFT-4: 8 kg

Characteristics / technical specifications

• Series name: TFT series (TFT-1 / TFT-2 / TFT-3 / TFT-4).
• Cylinder diameter: φ286 mm; cylinder depth: 39 mm.
• Tablet fall height standardized: 156 mm.
• Rotating speed: variable 20–100 rpm (model-dependent) or preset 25 rpm on specific models.
• Rotation count range: 5–900 turns depending on model; presets available.
• Power supply and consumption: AC110/220V ±10%, 50/60Hz; consumption varies by model (20–50 W).
• Compact footprint suitable for QC labs; configuration options for single or double cylinder testing.
