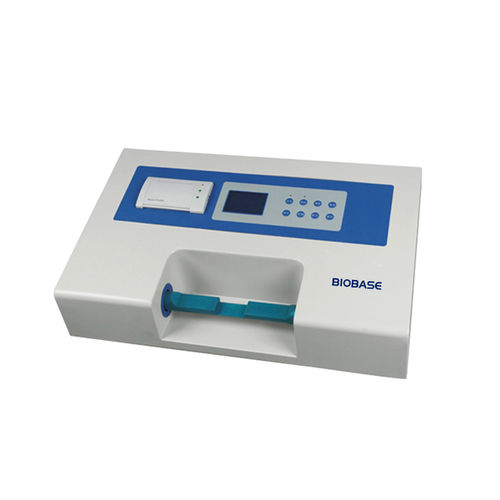

Laboratory hardness tester THT-1

for the pharmaceutical industry

Introduction
The Tablet Hardness Tester from BIOBASE is an essential laboratory instrument for accurately measuring tablet breaking strength and crushing resistance in pharmaceutical testing.

Product details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Models: THT-1, THT-2, THT-3

Features

• LCD display and high-precision force sensor for accurate, reproducible results.
• Operation modes: THT-1 manual loading and manual compression; THT-2/THT-3 manual single tablet and automatic continuous testing.
• Automatic display, automatic latching, automatic reset, automatic cycle testing, automatic linear error correction and automatic fault diagnosis.
• Unit conversion function available before or after tests.
• Advanced data processing: statistics, analysis, printing and display (THT-2).
• Built-in printer (THT-2).

Technical parameters (table)
Model: THT-1 | THT-2 | THT-3
Test Range: 2~200 N (0.2~20 kg) | 2~200 N / 500 N (0.2~20 kg); Customize: 2~500 N (0.2~50 kg)
Resolution: 0.1 N; 0.01 kg
Accuracy: ±0.5%
Probe travel range: 2~20 mm (THT-1) | 2~40 mm (THT-2/THT-3)
Power consumption: 10 W (THT-1) | 40 W (THT-2/THT-3)
Power supply: AC110/220V ±10%, 50/60Hz
Dimensions (W*D*H) mm: 280*180*110 (THT-1) | 500*400*160 (THT-2) | 400*240*140 (THT-3)
Package size (W*D*H) mm: 420*305*230 (THT-1) | 550*350*250 (THT-2) | 500*350*250 (THT-3)
Gross weight (kg): 6 | 12 | 10

Characteristics / technical specifications

• Available models: THT-1, THT-2, THT-3.
• Test range: standard 2–200 N; configurable up to 2–500 N on request.
• Resolution: 0.1 N / 0.01 kg; Accuracy: ±0.5%.
• Probe travel: 2–20 mm (THT-1), 2–40 mm (THT-2/THT-3).
• Power: AC110/220V ±10%, 50/60Hz; consumption varies by model.
• Data functions: statistics, analysis and printing (THT-2).
