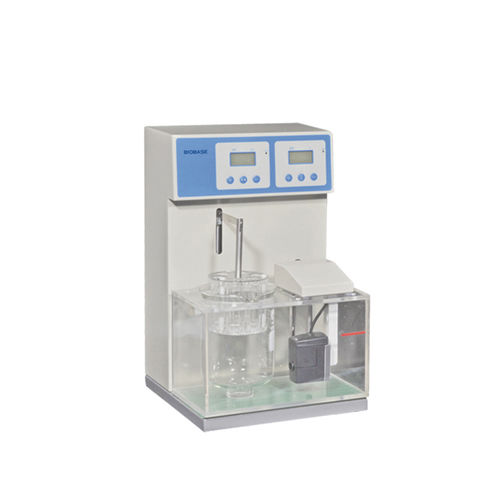

Automatic dissolution tester BK-RC series

for the pharmaceutical industryfor in-vitro drug releasefor tablets

Overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: BK-RC1 BK-RC3 BK-RC6 BK-RC8
Introduction: The dissolution tester is designed to measure pharmaceutical dissolution from tablets, capsules and similar dosage forms in a specified dissolution medium.

Features

• Microprocessor control with LCD display, auto-diagnose and auto-alarm.
• Stainless steel baskets and paddles.
• Bath with water circulation driven by magnetic pump for uniform temperature.
• Head section can be rotated smoothly and flexibly (rise and fall for BK-RC8).
• Available configurations with 1, 3, 6 or 8 baskets to match throughput requirements.

Technical Parameters (table)
Model: BK-RC1 | BK-RC3 | BK-RC6 | BK-RC8
Basket: 1pc | 3pcs | 6pcs | 8pcs
Speed Range: 20~200 rpm (all models)
Speed Precision: ±2 rpm (all models)
Temperature Range: RT ~ +45.0°C (all models)
Temperature Precision: ±0.3°C (all models)
Timing Range: BK-RC1/BK-RC3: 5~900 min | BK-RC6/BK-RC8: 1~999 min
Time Precision: ±0.5 min (all models)
Working Time: >24 h (all models)
Paddle Swing Amplitude: ±0.5 mm (all models)
Basket Swing Amplitude: ±1.0 mm (all models)
Power Consumption: BK-RC1: 600W | BK-RC3: 600W | BK-RC6: 1200W | BK-RC8: 1200W
Power Supply: AC110/220V±10%, 50/60Hz (all models)
External Size (W*D*H) mm: BK-RC1: 260*300*480 | BK-RC3: 510*300*480 | BK-RC6: 960*320*480 | BK-RC8: 680*540*480
Package Size (W*D*H) mm: BK-RC1: 490*395*560 | BK-RC3: 750*400*565 | BK-RC6: 1210*440*550 | BK-RC8: 920*650*670
Gross Weight (kg): BK-RC1: 18.5 | BK-RC3: 30 | BK-RC6: 44 | BK-RC8: 74

Download
Available brochure: 439-440 Disintegration Tester & Dissolution Tester.pdf

Characteristics / technical specifications

• Speed range: 20–200 rpm; precision ±2 rpm.
• Temperature control: RT to +45.0°C; precision ±0.3°C; water-circulating bath with magnetic pump for thermal stability.
• Timing: model-dependent (5–900 min or 1–999 min); time precision ±0.5 min.
• Mechanical stability: paddle swing amplitude ±0.5 mm; basket swing amplitude ±1.0 mm.
• Power supply: AC110/220V±10%, 50/60Hz; power consumption 600–1200W depending on model.
• Continuous operation capability: >24 h.
• Available models: BK-RC1, BK-RC3, BK-RC6, BK-RC8 (1/3/6/8 baskets).
