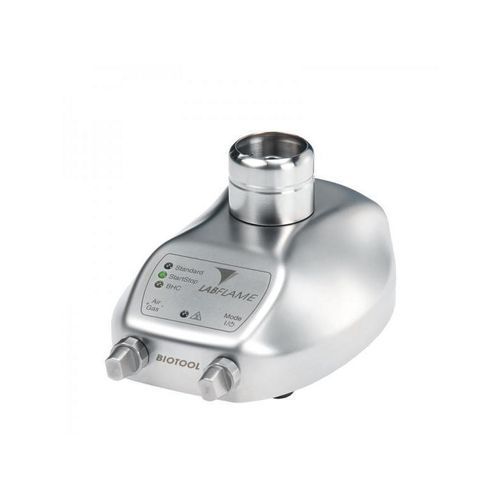

Laboratory Bunsen burner LabFlame basicgas
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory
- Other characteristics
- gas
Description
Product description
The basic model of the LabFlame series sets new standards in laboratory gas burner technology. With its innovative design, this safety laboratory burner is suitable for all flame-based applications in the lab.
Easy and safe operation
The LabFlame basic can be operated with a foot pedal or the button function. Three programs are available: flexible start-stop functions and the conventional foot pedal operation for short flame sterilization.
Modern design
The unique shape is eye-catching. The LabFlame basic is extremely space-saving. Measurements: 103 x 49 x 130 mm (w x h x d). The low profile body facilitates ergonomic operation; the streamlined design reduces air flow disturbances in a clean room workbench to a minimum.
Moreover, the LabFlame basic is very easy to clean - a laboratory gas burner without grooves and rough edges.Clogging is not an issue. Spilled liquids simply escape through an integrated drain while solid substances can easily be removed by opening the burner shaft.
Top-level safety
The Safety Control System SCS demonstrates state-of-the-art safety technology which constantly analyzes potential hazards and, if necessary, initiates safety measures, such as an interruption of the gas supply. In addition to the ignition and flame control function and the overheating protection, the new safety concept also features continuous burner head control (BHC). BHC unfailingly identifies burner head clogging by liquids or solid substances and ensures the correct assembly of the burner head. Exceptional passive safety features: After prolonged use, the residual heat display will signal that the burner head is still hot to protect the user from burns.
Robust
Fabricated entirely of stainless steel and with fireproof controls the LabFlame basic can withstand extreme lab conditions.
Additional benefits
Excellent energy values reduce gas consumption, increasing burn time when using gas cartridges.
Durable construction
Constructed entirely of stainless steel and fitted with heat-resistant controls, the LabFlame basic withstands extreme laboratory conditions. Ideal for cleanroom benches and general laboratory use.
Technical characteristics / specifications
The LabFlame basic- Ideal for use in cleanroom workbenches and laboratories.
The basic model of the LabFlame series sets new standards in laboratory gas burner technology. With its innovative design, this safety laboratory burner is suitable for all flame-based applications in the lab.
Easy and safe operation
The LabFlame basic can be operated with a foot pedal or the button function. Three programs are available: flexible start-stop functions and the conventional foot pedal operation for short flame sterilization.
Modern design
The unique shape is eye-catching. The LabFlame basic is extremely space-saving. Measurements: 103 x 49 x 130 mm (w x h x d). The low profile body facilitates ergonomic operation; the streamlined design reduces air flow disturbances in a clean room workbench to a minimum.
Moreover, the LabFlame basic is very easy to clean - a laboratory gas burner without grooves and rough edges.Clogging is not an issue. Spilled liquids simply escape through an integrated drain while solid substances can easily be removed by opening the burner shaft.
Top-level safety
The Safety Control System SCS demonstrates state-of-the-art safety technology which constantly analyzes potential hazards and, if necessary, initiates safety measures, such as an interruption of the gas supply. In addition to the ignition and flame control function and the overheating protection, the new safety concept also features continuous burner head control (BHC). BHC unfailingly identifies burner head clogging by liquids or solid substances and ensures the correct assembly of the burner head. Exceptional passive safety features: After prolonged use, the residual heat display will signal that the burner head is still hot to protect the user from burns.
Robust
Fabricated entirely of stainless steel and with fireproof controls the LabFlame basic can withstand extreme lab conditions.
Additional benefits
Excellent energy values reduce gas consumption, increasing burn time when using gas cartridges.
Durable construction
Constructed entirely of stainless steel and fitted with heat-resistant controls, the LabFlame basic withstands extreme laboratory conditions. Ideal for cleanroom benches and general laboratory use.
Technical characteristics / specifications
- Item no.: LF8.201.001
- Commercial designation (model): LabFlame basic
- Dimensions (W x H x D): 103 x 49 x 130 mm
- Material: stainless steel (housing), heat-resistant controls
- Operation: push-button control or foot pedal
- Programs: 3 programs (flexible start-stop functions or conventional foot-pedal control)
- Flame control: dual control for gas and air adjustment
- Safety: Safety Control System (SCS) with ignition and flame monitoring, overtemperature protection and burner-head monitoring (BHC)
- Passive safety: residual-heat indicator
- Cleaning / maintenance: removable burner head, disassemblable into individual components; liquid drain channel; no slots/corners
- Energy / consumption: improved energy values reduce gas consumption (longer burn time with gas cartridges)
- Application: cleanroom benches and general laboratory
The LabFlame basic- Ideal for use in cleanroom workbenches and laboratories.
