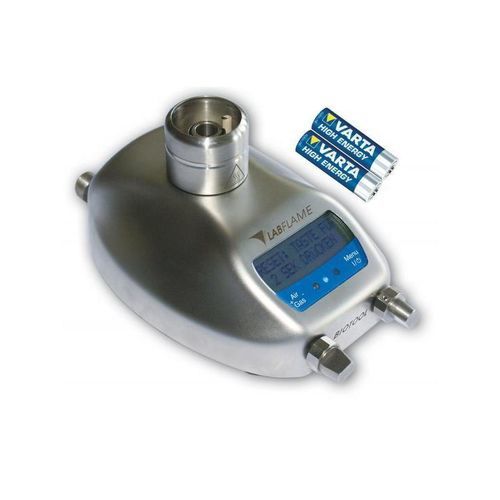

Laboratory Bunsen burner LabFlame +

gaswith graphic displaybattery-operated

Safety enhanced laboratory gas burner, battery operated with touch free IR-sensor and button function. Innovative technology with graphic display.

Battery performance
The exclusive Fuego SCS pro provides maximum flexibility. Wireless operation using state-of-the-art rechargeable battery technology guarantees independent operation. Two standard rechargeable batteries allow up to 9 hours of continuous operation. This corresponds to approximately 2000 inoculation loop flaming operations. The Fuego SCS pro has an integrated fast charging function and can be recharged in just 3 hours.

Versatile
The Fuego SCS pro can be operated with the touch-free IR-Sensor, button function or foot pedal*. For all options, different programs exist that have been developed on the basis of practical experience: flexible start-stop functions, continuous application for up to 2 hours or programs for short flame sterilization - exact to the second. When the burner is activated, the display shows the remaining burning time.

More convenience through the graphic display
The animated and high-contrast graphic display can be easily read under all lighting conditions due to the blue background illumination. The self-explanatory, language-less symbol menu facilitates a rapid selection of all functions. Is the display not in your line of sight? Acoustic signals additionally aid the user.

Cooling time reminder for inoculation loops
The precisely adjustable, exact to the second, cooling time reminder aids you in exactly complying with the required cooling period of inoculation loops.

Zero-pressure shut off
The zero-pressure shut-down provides additional safety at the end of work. With it the residual pressure is released from the connection hose and the gas hose's service life is increased.

Temperature regulation for heating media
With the new temperature regulation system and an optional temperature sensor, the laboratory gas burner becomes a temperature-control station.

Gas consumption display
No new cartridge at hand? The new gas consumption display reminds you to have a fresh gas cartridge on hand in a timely manner.
Innovative – The DoubleClick IR-Sensor
This safety function ensures that the burner can only be ignited by activating the DoubleClick IR-Sensor twice. As a result, unintentional ignition or ignition due to dropping or falling objects is virtually impossible, increasing safety considerably.

Top-off-the-Line safety
The Safety Control System SCS© means state-of-the-art safety technology which constantly analyzes potential hazards and, if necessary, initiates safety measures, such as an interruption of the gas supply. In addition to the ignition and flame control functions and the overheating protection, the new safety package also features continuous burner head control (BHC). BHC unfailingly detects burner head clogging by liquids or solid substances and ensures the correct assembly of the burner head.
Exceptional passive safety features: A residual heat display protects against burns. The automatic unit cut-off function prevents unintentional ignition of the flame when the burner has not been ignited for a longer period.

Modern design
The unique shape is eye-catching. The low casing makes convenient working possible; the streamlined design reduces the disturbance of the air current above a clean room workbench to a minimum. The LabFlame + is extremely space-saving. Measurements: 103 x 49 x 130 mm (w x h x d). With the DualKnob for adjusting gas and air flow, the flame can be precisely regulated. The removable burner head can simply be dismantled into its individual components for in-depth cleaning. Clogging is no longer a problem. Spilled liquids flow off through an integrated drain, and solid substances can be effortlessly removed by opening the burner shaft.

Robust
Fabricated entirely of stainless steel, with fireproof controls and a display, protected by heat resistant glass, the LabFlame + can withstand extreme lab conditions.

Technical specifications

• Model: LabFlame +
• Article No.: LF8.204.000
• Operation: cordless with 2 × AA batteries (up to approx. 9 hours / ~2000 flaming cycles)
• Fast-charge: recharge time approx. 3 hours
• Controls: IR sensor (incl. DoubleClick), buttons, foot pedal
• Programs: start-stop, long-run up to 2 hours, second-accurate flaming programs
• Display: animated graphic display, blue backlight, acoustic signals
• Safety functions: Zero-Pressure shut-off, gas/flame monitoring, over-temperature protection, burner-head monitoring (BHC), residual heat indicator, automatic shutdown
• Dimensions (W x H x D): 103 x 49 x 130 mm
• Materials: stainless steel, fire-resistant controls, special glass display protection

LabFlame + - Ideal for use in cleanroom workbenches and laboratories.
