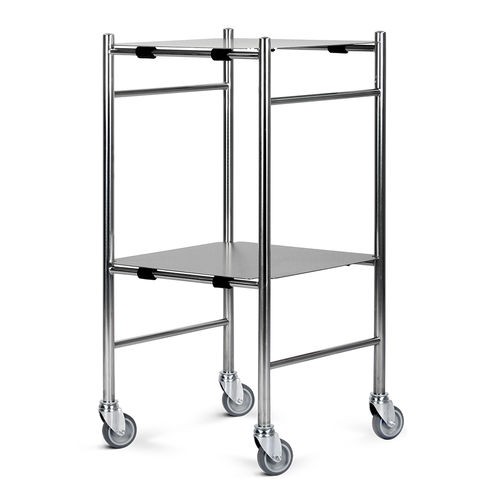

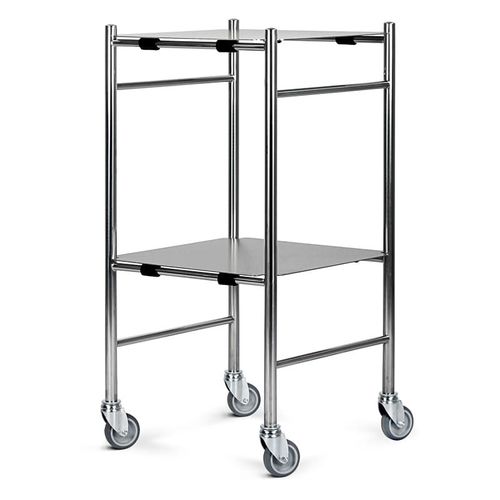

Medical trolley DTSR series
for operating roomsfor veterinary clinicsfor general purposes

Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes - image - 2
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes - image - 3
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes - image - 4
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes - image - 5
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes - image - 6
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes - image - 7
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes - image - 8
Medical trolley - DTSR series - Bristol Maid Hospital Metalcraft - for operating rooms / for veterinary clinics / for general purposes - image - 9
Add to favorites
Compare this product
Go to the Bristol Maid Hospital Metalcraft website for more information

Characteristics

Applications
medical, for operating rooms, for veterinary clinics
Use
for general purposes, for instruments
Function
multi-function, dressing, cleaning
Material
stainless steel
Components
with drawer, with shelf, with IV pole
Configuration
mobile

Description

Features
  • Meets BS4068:1977 specification for hospital trolleys for instruments, dressings and for anaesthetists' use
  • Seamlessly welded from 304 grade stainless steel for strength and ease of cleaning
  • Flat or reversible 304 grade stainless steel shelves, cushioned on anti-static spiral buffers (removable for cleaning)
  • Reversible shelves allow the end user to choose between a flat shelf or one with three upturned sides
  • Shelf heights: 405 mm and 870 mm
  • Maximum capacity per shelf: 40 kg
  • 75 mm pressed steel non-marking castors (1 x anti-static, 3 x non-anti-static)


Dimensions (W x D)
  • Shelf Size:
    • Small - 450 x 450 mm
    • Medium - 600 x 450 mm
    • Large - 750 x 450 mm
    • X-Large - 900 x 450 mm


Available variants (code | description | overall dimensions)
DTSR/450 | Two flat shelves, Small | 470 x 470 x 890 mm
DTSR/600 | Two flat shelves, Medium | 620 x 470 x 890 mm
DTSR/750 | Two flat shelves, Large | 770 x 470 x 890 mm
DTSR/900 | Two flat shelves, X-Large | 920 x 470 x 890 mm
DTSR/450/SR | Two reversible shelves, Small | 470 x 470 x 890 mm
DTSR/750/SR | Two reversible shelves, Large | 770 x 470 x 890 mm
DTSR/900/SR | Two reversible shelves, X-Large | 920 x 470 x 890 mm

Notes
  • Shelves available flat or reversible (flat or three upturned sides) to suit end user preference
  • Shelves cushioned on anti-static spiral buffers and removable for cleaning


Technical specifications
  • Material: 304 grade stainless steel (seamlessly welded construction)
  • Standard: BS4068:1977 compliance (hospital trolleys for instruments/dressings/anaesthetists)
  • Shelf options: flat or reversible stainless steel shelves; reversible option provides three upturned sides
  • Shelf heights: 405 mm and 870 mm
  • Load capacity: 40 kg maximum per shelf
  • Castors: 75 mm pressed steel non-marking (1 anti-static, 3 non-anti-static)
  • Available widths/depths: Small 450 x 450 mm, Medium 600 x 450 mm, Large 750 x 450 mm, X-Large 900 x 450 mm
  • Typical overall heights shown per variant ~ 890 mm
  • Product family / model series: DTSR series
