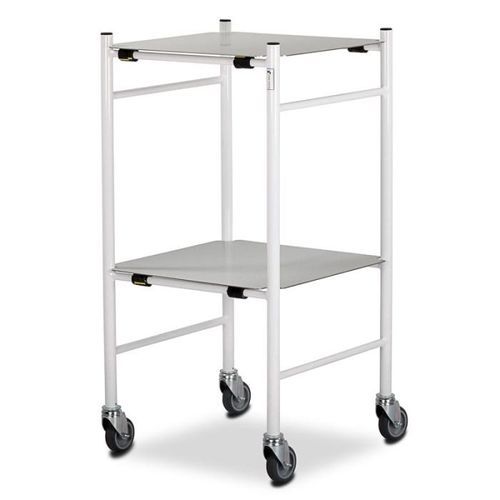

Medical trolley DTMR series

hospitalfor instrumentsstorage

Features

• Complies with BS4068:1977 for hospital trolleys for instruments, dressings and anaesthetists' use
• Seamlessly welded mild steel frame
• Flat or reversible 304-grade stainless steel shelves, cushioned on anti-static spiral buffers (removable for cleaning)
• Reversible shelf function allows choice of flat shelf or shelf with three upturned sides
• Shelf height options: 405 mm and 870 mm
• Maximum load per shelf: 40 kg
• 75 mm pressed steel non-marking castors (1 x anti-static, 3 x non-anti-static)

Dimensions (W x D)
Shelf size:

• Small - 450 x 450 mm
• Medium - 600 x 450 mm

Options / Codes
Code — Description — Overall Dimensions (W x D x H)
DTMR/450 — Two flat shelves, Small — 470 x 470 x 890 mm
DTMR/600 — Two flat shelves, Medium — 620 x 470 x 890 mm
DTMR/450/SR — Two reversible shelves, Small — 470 x 470 x 890 mm
DTMR/600/SR — Two reversible shelves, Medium — 620 x 470 x 890 mm

Standard colours

• Paint - White

Technical specifications

• Compliance: Meets BS4068:1977 for hospital trolleys for instruments, dressings and anaesthetists' use
• Frame: Seamlessly welded mild steel construction
• Shelves: 304-grade stainless steel (flat or reversible), cushioned on anti-static spiral buffers, removable for cleaning
• Reversible shelf function: choice of flat shelf or shelf with three upturned sides
• Shelf height options: 405 mm and 870 mm
• Maximum load per shelf: 40 kg
• Castors: 75 mm pressed steel non-marking castors (1 anti-static, 3 non-anti-static)
• Available shelf sizes: Small 450 x 450 mm; Medium 600 x 450 mm
• Typical product codes: DTMR/450, DTMR/600, DTMR/450/SR, DTMR/600/SR
