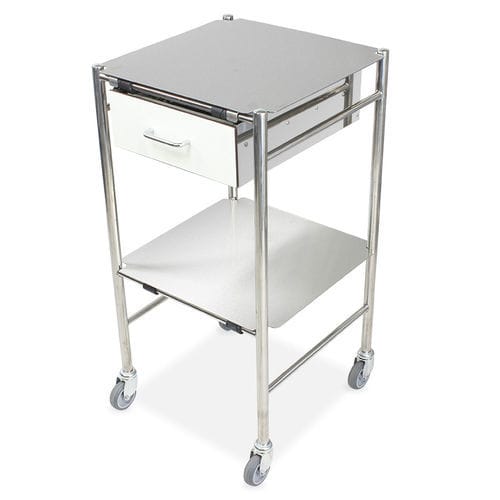

Medical trolley DUL/F

dressingmulti-functionstainless steel

Features

• Compatible with removable and fixed shelf trolley ranges, except 600 mm deep trolleys
• Available in two nominal external sizes:
  • Small — 300 x 400 mm
  • Large — 600 x 400 mm
• Each drawer unit supplied with a 100 mm deep HTM71 modular basket
• Stainless steel basket support and drawer carriage
• Precision telescopic runners for smooth drawer operation
• Solid grade laminate drawer front
• Trolleys accept only one tier of drawers
• Drawers are not lockable
• Factory fitted; must be ordered at the same time as the trolley

Internal dimensions (W x D)

• Small — 235 x 335 mm (internal)
• Large — 535 x 335 mm (internal)

Trolley compatibility

• Drawer Unit - Small: compatible with 450 mm and 600 mm trolleys
• Drawer Unit - Large: compatible with 750 mm and 900 mm trolleys

Product codes / options
DUL/F | Drawer Unit - Large, Fixed Shelf Trolleys
DUL/R | Drawer Unit - Large, Removable Shelf Trolleys
DUS/F | Drawer Unit - Small, Fixed Shelf Trolleys
DUS/R | Drawer Unit - Small, Removable Shelf Trolleys


Technical specifications

• Brand: Bristol Maid
• Commercial name: Drawer Units
• Basket depth supplied: 100 mm (HTM71 modular basket)
• Basket support and carriage: Stainless steel
• Drawer front: Solid grade laminate
• Runners: Precision telescopic runners
• Locking: Drawers are not lockable
• Fitting: Factory fitted; must be ordered with the trolley
• Available sizes (nominal external): Small 300 x 400 mm; Large 600 x 400 mm
• Internal dimensions (W x D): Small 235 x 335 mm; Large 535 x 335 mm
• Trolley compatibility: Small for 450 mm & 600 mm trolleys; Large for 750 mm & 900 mm trolleys
