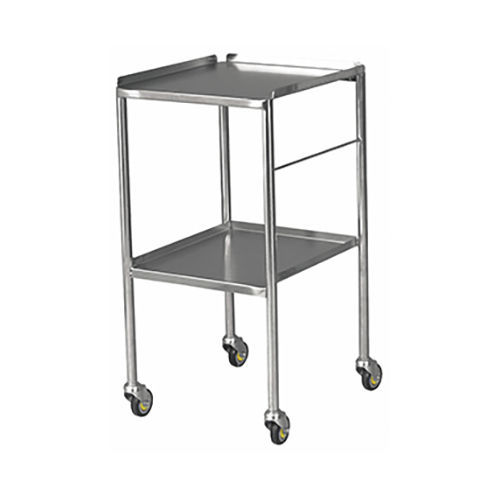

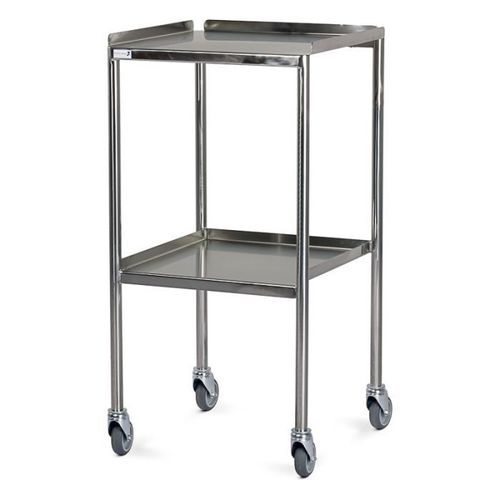

Hospital trolley DTSF/450

for consumablesfor instrumentsstainless steel

Product overview

• Fixed stainless steel shelving unit with sides up (three sides up, one side down) designed for clinical use.
• Constructed from 304 grade stainless steel with seamless welding for strength and ease of cleaning.
• Designed to meet hospital instrument and dressing trolley requirements.

Features

• Meets BS4068:1977 specification for hospital trolleys for instruments, dressings and anaesthetists' use.
• Seamlessly welded from 304 grade stainless steel for strength and ease of cleaning.
• Fixed shelves with three sides up and one side down to retain instruments and consumables.
• Shelf heights available: 405 mm and 870 mm.
• Maximum capacity per shelf: 40 kg.
• 75 mm pressed steel non-marking castors (1 x anti-static, 3 x non-anti-static) as standard.

Overall dimensions (W x D x H)
Small - 470 x 470 x 890 mm
Medium - 620 x 470 x 890 mm
Large - 770 x 470 x 890 mm
X-Large - 920 x 470 x 890 mm

Shelf sizes (W x D)

• 450 x 450 mm
• 600 x 450 mm
• 750 x 450 mm
• 900 x 450 mm

Product options / codes (summary table)
Code | Description | Express Delivery | Overall Dimensions (W x D x H)
DTSF/450 | Two Shelf, Small | Yes | 470 x 470 x 890 mm
DTSF/600 | Two Shelf, Medium | Yes | 620 x 470 x 890 mm
DTSF/750 | Two Shelf, Large | — | 770 x 470 x 890 mm
DTSF/900 | Two Shelf, X-Large | — | 920 x 470 x 890 mm

Notes

• Maximum capacity per shelf given for standard configuration: 40 kg per shelf.
• Castor configuration: 75 mm pressed steel, non-marking; includes one anti-static castor and three non-anti-static castors as standard.

Technical specifications

• Material: 304 grade stainless steel, seamless welded construction.
• Compliance: BS4068:1977 (hospital trolley specification).
• Shelf configuration: fixed shelves, sides up (three sides raised, one side down).
• Shelf heights available: 405 mm and 870 mm.
• Shelf maximum load: 40 kg per shelf.
• Castors: 75 mm pressed steel non-marking (1 anti-static, 3 non-anti-static).
• Available nominal shelf depths: 450 mm (product page focus).
