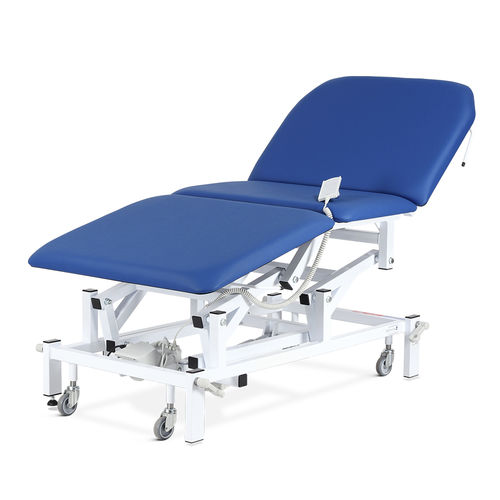

Bariatric examination table EC2305/VAQ

electricheight-adjustablewith adjustable backrest

Key features

• Standards: BS 2838-2:1991; EN 60601-1:2006 + A12:2014
• Electric height adjustment, range 520–950 mm
• Three-section top with adjustable backrest and footrest (backrest manual -25° to +90° or electric -22° to +90° depending on variant)
• Footrest adjustment: -25° to +75°
• Anti-trap gas struts with release levers on back and foot sections; optional electric backrest
• Retractable castors at both ends and one adjustable levelling foot
• Clearance under frame for access by mobile hoists
• Actuator: 230V~, 50/60Hz with UK 3-pin plug; hand or foot switch options
• Seamless flame-retardant, antimicrobial vinyl upholstery
• Frame prepared to accept optional accessories
• Maximum load capacity: 325 kg

Overall dimensions (W x D x H)
850 x 1790 x 520 - 950 mm

Standard colours

• Paint: White
• Vinyl: Bristol Blue

Variants / Codes (selection)
EC2305/VAQ | Electric, Hand Switch, Aquamarine | 850 x 1790 x 520-950 mm
EC2305/VBB | Electric, Hand Switch, Bristol Blue | 850 x 1790 x 520-950 mm
EC2305/VCB | Electric, Hand Switch, Coastal Blue | 850 x 1790 x 520-950 mm
EC2305/VCH | Electric, Hand Switch, Chocolate | 850 x 1790 x 520-950 mm
EC2305/VFR | Electric, Hand Switch, Flame Red | 850 x 1790 x 520-950 mm
EC2310/... | Electric, Foot Switch, various colours | 850 x 1790 x 520-950 mm
EC2315/... | Electric with Electric Backrest, Hand Switch, various colours | 850 x 1790 x 520-950 mm
EC2320/... | Electric with Electric Backrest, Foot Switch, various colours | 850 x 1790 x 520-950 mm

Options & accessories (examples)

• Infusion pole (E08) — frame prepared to accept
• Breather hole and plug — accessory option

Technical specifications

• Standards: BS 2838-2:1991; EN 60601-1:2006 + A12:2014
• Height adjustment: electric, 520–950 mm
• Backrest: manual -25° to +90° or electric -22° to +90° (variant dependent)
• Footrest: -25° to +75°
• Actuator: 230V~, 50/60Hz with UK 3‑pin plug; hand or foot control options
• Maximum load capacity: 325 kg
• Upholstery: seamless flame-retardant antimicrobial vinyl
• Mobility: retractable castors both ends; one levelling foot; clearance for mobile hoists
• Frame: prepared for optional accessories
