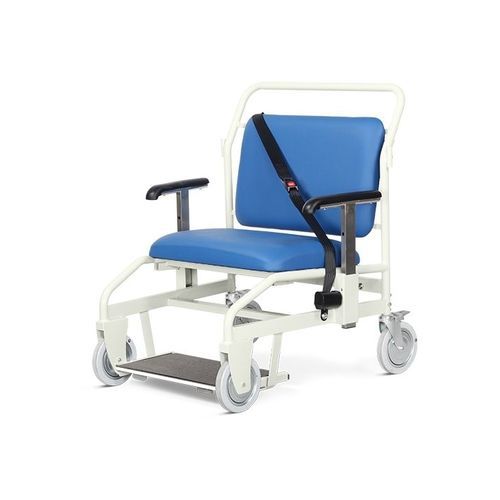

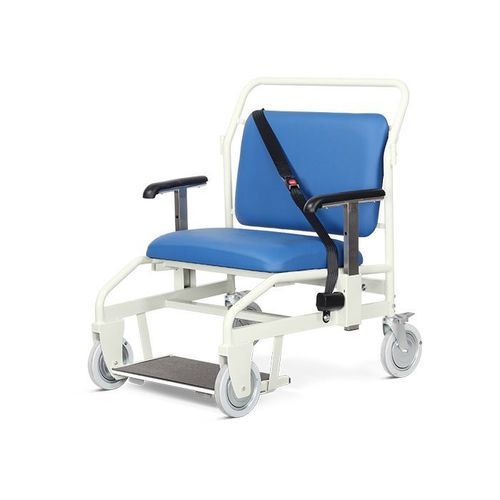

Indoor transfer chair G/500/RS/VBB

with IV polewith legrestwith armrests

Product name
Portering chair G/500/RS — Bariatric, rear steer, sliding footrest

Features

• Heavy-duty bariatric portering chair designed for patient transport within clinical areas
• Seamless upholstery in flame-retardant, antimicrobial vinyl for infection control and easy cleaning
• Moulded drop-down armrests provide side access for patient transfer and caregiver assistance
• Sliding footrest improves access and supports feet during transit
• Anti-tip design prevents tipping if step is used by the patient
• Rear seat pocket for X-rays or notes and hook for personal belongings
• Fittings on rear uprights for IV pole mounting
• Retractable diagonal seatbelt for patient safety
• 200 mm fixed wheels and 200 mm cushioned total-stop braking castors
• Recommended: two staff in attendance when used with a patient over 190 kg
• Maximum safe working capacity: 380 kg

Overall dimensions (w x d x h)

• Overall: 930 x 1000 x 1090 mm
• Seat: 740 x 670 mm; seat height 530 mm
• Back: 700 x 480 mm

Standard colours

• Paint: Grey White
• Upholstery: Bristol Blue

Variants / Codes
G/500/RS/VBB | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Bristol Blue | 930 x 1000 x 1090mm
G/500/RS/VAQ | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Aquamarine | 930 x 1000 x 1090mm
G/500/RS/VFR | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Flame Red | 930 x 1000 x 1090mm
G/500/RS/VGH | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Graphite | 930 x 1000 x 1090mm
G/500/RS/VSD | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Sand Dune | 930 x 1000 x 1090mm
G/500/RS/VOB | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Onyx Black | 930 x 1000 x 1090mm
G/500/RS/VLI | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Lime | 930 x 1000 x 1090mm
G/500/RS/VCH | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Chocolate | 930 x 1000 x 1090mm
G/500/RS/VCB | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Coastal Blue | 930 x 1000 x 1090mm
G/500/RS/VPE | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Peach | 930 x 1000 x 1090mm
G/500/RS/CCLK/VBB | Portering Chair - Bariatric, Rear Steer, Sliding Footrest, Fitted with Coin / Card Lock | 930 x 1000 x 1090mm


Technical specifications

• Maximum safe working capacity: 380 kg
• Recommendation: two staff in attendance when used with a patient in excess of 190 kg
• Seat dimensions: 740 x 670 mm; seat height 530 mm
• Back dimensions: 700 x 480 mm
• Wheels / castors: 200 mm fixed wheels and 200 mm total-stop braking castors (cushioned)
• Upholstery: flame-retardant, antimicrobial vinyl (seamless)
• Safety fittings: retractable diagonal seatbelt; fittings for IV pole mounting to rear uprights
• Accessories / options: coin/card lock fitted option
• Design notes: moulded drop-down armrests for side access; sliding footrest; rear pocket for X-ray/notes; anti-tip design
