- Bariatric examination chair
- Bristol Maid Hospital Metalcraft

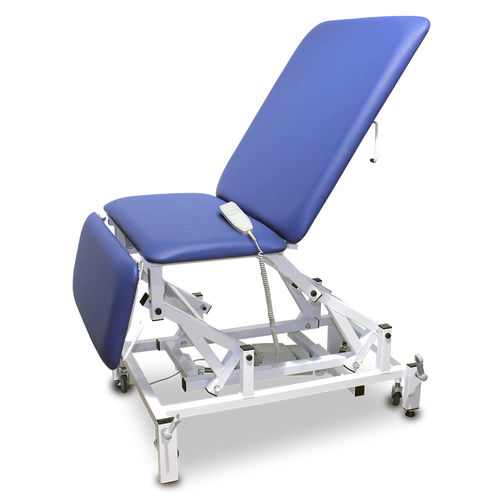

General examination chair EC4330bariatricelectricmanual
Add to favorites
Compare this product
Characteristics
- Applications
- general, bariatric
- Operation
- electric, manual, foot-operated
- Features
- height-adjustable, with legrest, with adjustable backrest, on casters, reclining
- Number of sections
- 3-section
- Color
- blue, gray, green, white, red, yellow, pink
- Weight capacity
325 kg
(717 lb)- Height
Min.: 52 cm
(20.5 in)Max.: 95 cm
(37.4 in)- Width
85 cm
(33.5 in)- Length
179 cm
(70.5 in)
Description
KEY FEATURES
TECHNICAL SPECIFICATIONS
OVERALL DIMENSIONS (W x D x H)
850 x 1790 x 520 - 950 mm
STANDARD COLOURS
APPLICATIONS
- Standards: BS 2838-2:1991; EN 60601-1:2006+A12:2014
- Electric height adjustment, range 520–950 mm
- Drop-end design with three-section top for examination and treatment
- Backrest angle: manual -25° to +90°; electric -22° to +90°
- Manual and electric options available
- Footrest angle adjustable from -90° to +10°
- Anti-trap gas strut with release lever on back and footrest sections
- Retractable castors at both ends for movement and positioning
- One adjustable foot for levelling on uneven floors
- Frame clearance allows access for mobile hoists
- Actuator: 230V ~, 50/60Hz with UK 3-pin plug; hand or foot switch options
- Seamless upholstery in flame-retardant antimicrobial vinyl
- Frame prepared to accept optional accessories
- Maximum user capacity: 325 kg
TECHNICAL SPECIFICATIONS
- Model / code family: EC4330 (variants include EC4330/VBB, EC4330/VSU, EC4330/VAQ, etc.)
- Standards compliance: BS 2838-2:1991; EN 60601-1:2006+A12:2014
- Height adjustment: electric, 520–950 mm
- Backrest: manual -25° to +90°; electric -22° to +90°
- Footrest: -90° to +10°
- Actuator / Power: 230V ~, 50/60Hz; UK 3-pin plug; hand or foot control
- Mobility: retractable castors both ends; one adjustable levelling foot
- Hoist compatibility: underframe clearance for mobile hoists
- Upholstery: seamless, flame-retardant, antimicrobial vinyl
- Accessory readiness: frames prepared for optional attachments
- Maximum capacity: 325 kg
- Overall dimensions (W x D x H): 850 x 1790 x 520–950 mm
- Standard colours: Paint – White; Vinyl – Bristol Blue
OVERALL DIMENSIONS (W x D x H)
850 x 1790 x 520 - 950 mm
STANDARD COLOURS
- Paint - White
- Vinyl - Bristol Blue
APPLICATIONS
- Designed for clinical environments: general examinations, treatment procedures and bariatric care
- Compatible with mobile hoists and routine patient handling workflows
- Suitable for hospitals, clinics and specialist treatment rooms
