Bariatric examination couch EC2225/VSD generalelectricheight-adjustable
Add to favorites
Compare this product
Characteristics
- Applications
- general, bariatric
- Operation
- electric
- Features
- with adjustable backrest, height-adjustable, reclining, on casters, portable
- Number of sections
- 2-section
- Color
- blue, black, gray, green, red, brown, beige, orange
- Weight capacity
325 kg
(716.5 lb)- Width
850 mm
(33.5 in)- Height
Min.: 520 mm
(20.47 in)Max.: 950 mm
(37.4 in)
Description
Product overview

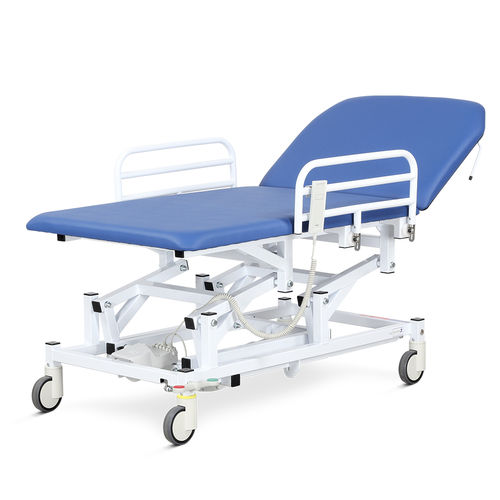

The Examination & Treatment Couch EC2225 is a two-section mobile bariatric couch engineered for clinical examination and general treatment environments. It features electric height adjustment (520–950 mm), selectable manual or electric backrest adjustment, seamless flame‑retardant antimicrobial vinyl upholstery and a frame prepared to accept a range of optional accessories. The design provides clearance for mobile hoists and mobility via 125 mm swivel castors with central locking.
Features
OVERALL DIMENSIONS (W x D x H)
850 x 1790 x 520 - 950 mm
Standard colours
Technical specifications
The Examination & Treatment Couch EC2225 is a two-section mobile bariatric couch engineered for clinical examination and general treatment environments. It features electric height adjustment (520–950 mm), selectable manual or electric backrest adjustment, seamless flame‑retardant antimicrobial vinyl upholstery and a frame prepared to accept a range of optional accessories. The design provides clearance for mobile hoists and mobility via 125 mm swivel castors with central locking.
Features
- Standards: BS 2838-2:1991; EN 60601-1:2006+A12:2014
- Electric height adjustment, range 520–950 mm
- Backrest adjustment: Manual -25° to +90°; Electric -22° to +90° (option dependent)
- Optional anti-trap gas strut with release lever for the backrest
- 125 mm swivel castors with central locking and steering facility
- Clearance beneath frame to allow access for mobile hoists
- 230V~, 50/60Hz actuator supplied with UK 3‑pin plug; hand or foot switch options
- Seamless upholstery in flame‑retardant antimicrobial vinyl for infection control and easy cleaning
- Swing-down side support rails fitted to either side
- Frame prepared to accept optional accessories
- Maximum load capacity: 325 kg
OVERALL DIMENSIONS (W x D x H)
850 x 1790 x 520 - 950 mm
Standard colours
- Paint: White
- Vinyl: Bristol Blue
Technical specifications
- Product: Two-section mobile bariatric examination & treatment couch
- Model designation: EC2225 (base code for variant references)
- Maximum load capacity: 325 kg
- Height adjustment: Electric, 520–950 mm
- Backrest adjustment (angle): Manual -25° to +90°; Electric -22° to +90°
- Anti-trap gas strut: Optional (release lever)
- Castors: 125 mm swivel with central locking & steering
- Actuator: 230V~, 50/60Hz (UK 3‑pin plug); hand or foot switch option
- Upholstery: Seamless flame-retardant antimicrobial vinyl
- Side rails: Swing-down fitted to either side
- Frame: Prepared for optional accessories; clearance for mobile hoists
- Standards: BS 2838-2:1991; EN 60601-1:2006+A12:2014
