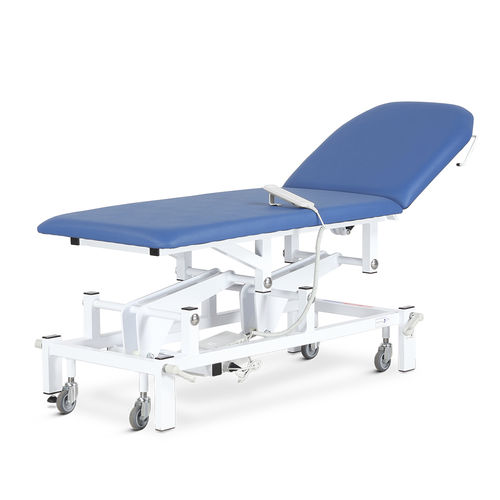

Electric examination table EC series

height-adjustablewith adjustable backreston casters

Overview
High quality two-section examination and treatment couch designed for clinical environments, compliant with relevant medical equipment standards and available in hydraulic or electric height-adjustable versions. Suitable for general examination and treatment with options for electric backrest, foot or hand switch control and various upholstery/paint colour options.

Features

• Standards: BS 2838-2:1991 (Examination & general treatment couches - build, performance & safety specifications)
• Standards: EN 60601-1:2006 + A12:2014 (Medical electrical equipment - General requirements for basic safety & essential performance)
• Electric or hydraulic height adjustment
• Height adjustment range: 490 - 950 mm
• Adjustable angle backrest
  • Manual: -25° to +90°
  • Electric: -22° to +90°
• Anti-trap gas strut fitted with a release lever used on the backrest section (optional electric)
• Retractable castors fitted to both ends to assist with movement & positioning
• One adjustable foot fitted to allow levelling on uneven floors
• Clearance beneath frame allows access for mobile hoists
• Electric models (230 V ~, 50/60 Hz) fitted with a UK 3-pin plug and available with either a hand or foot switch
• Hydraulic models use a foot pump pedal positioned on both sides of the couch
• Seamless & contoured upholstery using flame retardant & anti-bacterial vinyl
• Frames prepared to accept optional accessories (infusion pole, battery backup, etc.)
• Maximum safe working capacity: 225 kg

Overall Dimensions (W x D x H)
630 x 1790 x 490 - 950 mm

Standard Colours

• Paint: White
• Vinyl: Bristol Blue

Options / Accessories (examples)

• Battery Back Up (option)
• Infusion Pole (option)

Variants (selection — code / description / overall dimensions)
Header: Code | Description | Overall Dimensions (W x D x H)
EC1205/VAQ | Hydraulic, Aquamarine | 630 x 1790 x 490-950 mm
EC1205/VBB | Hydraulic, Bristol Blue | 630 x 1790 x 490-950 mm
EC1205/VCB | Hydraulic, Coastal Blue | 630 x 1790 x 490-950 mm
EC1205/VSU | Hydraulic, Sunflower | 630 x 1790 x 490-950 mm
EC1205/VFR | Hydraulic, Flame Red | 630 x 1790 x 490-950 mm
EC1205/VGH | Hydraulic, Graphite | 630 x 1790 x 490-950 mm
EC1205/VLI | Hydraulic, Lime | 630 x 1790 x 490-950 mm
EC1205/VOB | Hydraulic, Onyx Black | 630 x 1790 x 490-950 mm
EC1210/VAQ | Electric, Hand Switch, Aquamarine | 630 x 1790 x 490-950 mm
EC1210/VBB | Electric, Hand Switch, Bristol Blue | 630 x 1790 x 490-950 mm
EC1210/VCB | Electric, Hand Switch, Coastal Blue | 630 x 1790 x 490-950 mm
EC1210/VSU | Electric, Hand Switch, Sunflower | 630 x 1790 x 490-950 mm
EC1210/VFR | Electric, Hand Switch, Flame Red | 630 x 1790 x 490-950 mm
EC1210/VGH | Electric, Hand Switch, Graphite | 630 x 1790 x 490-950 mm
EC1210/VLI | Electric, Hand Switch, Lime | 630 x 1790 x 490-950 mm
EC1210/VCB | Electric, Hand Switch, Coastal Blue | 630 x 1790 x 490-950 mm
EC1210/VRO | Electric, Hand Switch, Rosebud (example variant) | 630 x 1790 x 490-950 mm
EC1210/VBB/E02 | Electric, Hand Switch, Bristol Blue (extended option) | 630 x 1790 x 490-950 mm
EC1215/... | Electric, Foot Switch variants (multiple colour options) | 630 x 1790 x 490-950 mm
EC1220/... | Electric with Electric Backrest, Hand Switch variants (multiple colour options) | 630 x 1790 x 490-950 mm
EC1225/... | Electric with Electric Backrest, Foot Switch variants (multiple colour options) | 630 x 1790 x 490-950 mm

Caractéristiques / spécifications techniques

• Standards: BS 2838-2:1991; EN 60601-1:2006 + A12:2014
• Height adjustment: 490–950 mm (electric or hydraulic)
• Backrest adjustment: manual -25° to +90°; electric -22° to +90°
• Anti-trap gas strut on backrest (release lever) — optional on electric models
• Retractable castors both ends; one adjustable levelling foot
• Mobile hoist access beneath frame
• Electric mains: 230 V ~, 50/60 Hz; UK 3-pin plug; control via hand or foot switch (model dependent)
• Hydraulic versions: foot pump pedals on both sides
• Upholstery: seamless, contoured, flame retardant and anti-bacterial vinyl
• Frame: prepared to accept optional accessories (e.g., infusion pole, battery backup)
• Maximum capacity: 225 kg
• Overall footprint: 630 x 1790 mm (length) with adjustable height 490–950 mm
