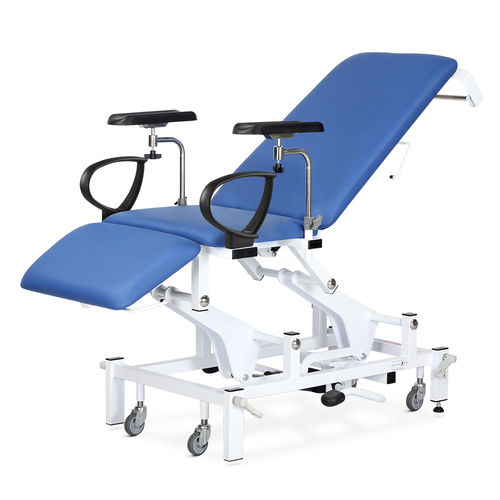

Phlebotomy examination chair EC53 serieshydraulicelectricheight-adjustable
Add to favorites
Compare this product
Characteristics
- Applications
- phlebotomy
- Operation
- electric, hydraulic
- Features
- height-adjustable, with adjustable backrest, on casters
- Number of sections
- 3-section
- Color
- blue, black, green, gray, beige, red, orange, brown
- Weight capacity
225 kg
(496 lb)- Weight
69 kg
(152 lb)- Height
Min.: 490 mm
(19.3 in)Max.: 950 mm
(37.4 in)- Width
770 mm
(30.3 in)
Description
Overview
Compliance & Standards
Key features
Overall dimensions (W x D x H)
770 x 1710 x 490 - 950 mm
Standard colours
Variants / Codes
Options / Accessories
Technical specifications
- Phlebotomy chair EC53xx designed for blood sampling and outpatient procedures, offering electric or hydraulic height adjustment and adjustable backrest and footrest for patient comfort and operator access.
Compliance & Standards
- Meets BS 2838-2:1991 examination & general treatment couches requirements and EN 60601-1:2006+A12:2014 where applicable.
Key features
- Electric or hydraulic height adjustment, range 490 - 950 mm
- Adjustable backrest angle
- Manual: -25° to +90°
- Electric: -22° to +90°
- Adjustable footrest angle: -90° to +10°
- Anti-trap gas struts with release levers on backrest and footrest (electric backrest optional)
- Retractable castors at both ends and one adjustable levelling foot for positioning
- Clearance under frame for access with mobile hoists
- Seamless, flame-retardant, anti-microbial vinyl upholstery
- Adjustable polyurethane phlebotomy armrests and side support loops to assist patient access (self-assembly)
- Paper roll holder (max 510 mm wide x 200 mm diameter)
- Frame prepared to accept optional accessories; maximum load capacity 225 kg
Overall dimensions (W x D x H)
770 x 1710 x 490 - 950 mm
Standard colours
- Paint - White
- Vinyl - Bristol Blue
Variants / Codes
- EC5305 - Hydraulic
- EC5310 - Electric with hand switch
- EC5315 - Electric with foot switch
- EC5320 - Electric with electric backrest (hand switch)
- EC5325 - Electric with electric backrest (foot switch)
- Each variant available in multiple vinyl colours (Aquamarine, Bristol Blue, Coastal Blue, Sunflower, Flame Red, Graphite, Lime, Onyx Black, Rosebud)
Options / Accessories
- Battery back-up (accessory)
Technical specifications
- Standards: BS 2838-2:1991; EN 60601-1:2006+A12:2014
- Height adjustment: 490 - 950 mm (electric or hydraulic)
- Backrest angle: Manual -25° to +90°; Electric -22° to +90°
- Footrest angle: -90° to +10°
- Anti-trap gas struts with release levers (back & footrest)
- Retractable castors both ends; one adjustable levelling foot
- Clearance under frame suitable for mobile hoists
- Electric models: 230 V~, 50/60 Hz, UK 3-pin plug; hand or foot control depending on variant
- Hydraulic models: foot pump pedal on both sides
- Upholstery: seamless, flame retardant, anti-microbial vinyl
- Phlebotomy armrests: adjustable polyurethane
- Paper roll holder suitable for rolls up to 510 mm wide x 200 mm diameter
- Frame prepared for optional accessories
- Maximum load capacity: 225 kg
