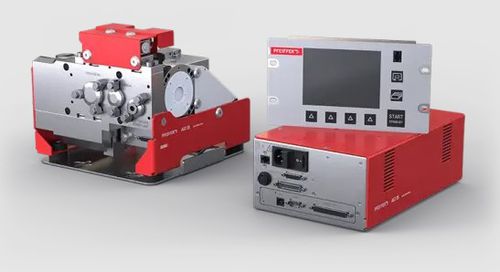

Gas leak detector ASI 35

for the pharmaceutical industrybenchtop

Modular design, small footprint, easy integration into any leak detection system Accurate High sensitivity, repeatable measurements, suitable for short cycle time and high production throughput Robust High reliability, long maintenance intervals Technical data - Test method - Spraying and sniffing tests Detectable gases - ⁴He; ³He; H₂ Min. detectable leak rate for Helium (spraying test) (Pa m³/s) - 5 · 10⁻¹³ Pa m³/s Min. detectable leak rate for Helium (spraying test) (mbar l/s) - 5 · 10⁻¹² mbar l/s Min. detectable leak rate for Helium (sniffing test) (Pa m³/s) - 1.5 · 10⁻⁹ Pa m³/s Min. detectable leak rate for Helium (sniffing test) (mbar l/s) - 1.5 · 10⁻⁸ mbar l/s Pumping speed for Helium - 6 l/s Power supply - 90-240 V Max. power consumption - 300 W Max. test inlet pressure - 18 mbar Start-up time (20 °C) - <3 min Operating temperature - 10 - 45 °C Communication interfaces - I/O, RS-232, Profibus, Profinet Weight approx. control panel - 1.3 kg Weight approx. electronic module - 5 kg Weight approx. vacuum module - 15 kg Dimensions (L x W x H) control panel - 241 x 54 x 133 mm Dimensions (L x W x H) electronic module - 216 x 111 x 317 mm Dimensions (L x W x H) vacuum module - 235 x 264 x 279 mm Inlet port - DN 25 ISO-KF, DN 16 ISO-KF Accessories Cable Sniffer module Sniffer probe with different hose length Communication interface compatible with industrial standards
