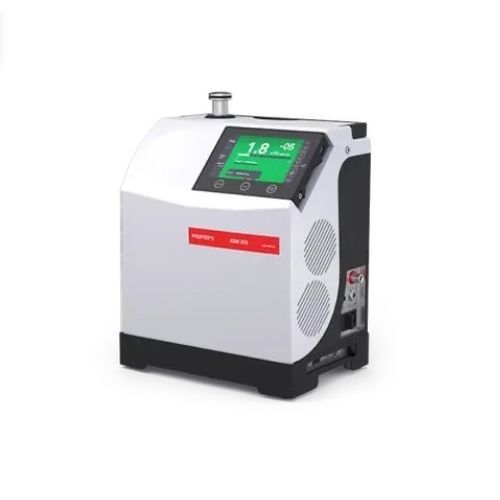

Helium leak detector ASM 310

for medical devicescompact

Compact, retractable handle, lightweight, detachable control panel High performance Best sensitivity-to-size-ratio User-friendly Ideal for maintenance applications and leak detection service providers Technical data Test method - Spraying and sniffing tests Detectable gases - ⁴He; ³He; H₂ Min. detectable leak rate for Helium (spraying test) (Pa m³/s) - 1 · 10⁻¹³ Pa m³/s Min. detectable leak rate for Helium (spraying test) (mbar l/s) - 1 · 10⁻¹² mbar l/s Min. detectable leak rate for Helium (sniffing test) (Pa m³/s) - 1 · 10⁻⁸ Pa m³/s Min. detectable leak rate for Helium (sniffing test) (mbar l/s) - 1 · 10⁻⁷ mbar l/s Pumping speed for Helium - 1.1 l/s Power supply - 90-240 V Max. power consumption - 300 W Max. test inlet pressure - 15 mbar Start-up time (20 °C) - <2 min Response time - <1 s Backing pump - Diaphragm pump Roughing capacity - 1.7 m³/h Operating temperature - 10-40 °C Communication interfaces - Standard 15 pins I/O, RS-232 Sound pressure level - <45 dB(A) Weight approx. - 21 kg Dimensions (L x W x H) - 350 x 254 x 414 mm Inlet port - DN 25 ISO-KF Accessories Sniffer probe with 5 or 10 m hose length Helium spray gun Remote control Trolley Transport box Country-specific power cable
