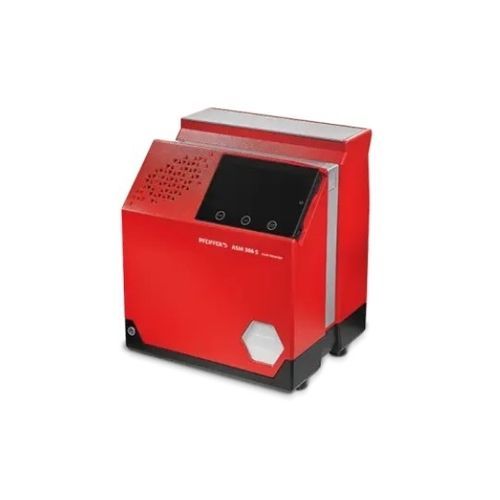

Helium leak detector ASM 306S

hydrogenfor medical devicesbenchtop

High sensitivity, repeatable measurements Compact Small footprint, suitable for desktop use or integration into production lines User-friendly Visual management of test results on large high resolution color display as well as on dedicated sniffer probe Technical data - Test method - Sniffing test Detectable gases - ⁴He; H₂ Min. detectable leak rate for Helium (sniffing test) (Pa m³/s) - 1 · 10⁻⁸ Pa m³/s Min. detectable leak rate for Helium (sniffing test) (mbar l/s) - 1 · 10⁻⁷ mbar l/s Min. detectable leak rate for Hydrogen (Pa m³/s) - 5 · 10⁻⁸ Pa m³/s Min. detectable leak rate for Hydrogen (mbar l/s) - 5 · 10⁻⁷ mbar l/s Power supply - 100-240 V Max. power consumption - 300 W Start-up time (20 °C) - 2 min Response time - <1 s Operating temperature - 10-40 °C Communication interfaces - I/O, RS-232, Ethernet (PC), Profibus, Profinet Sound pressure level - 55 dB(A) Weight approx. - 22 kg Dimensions (L x W x H) - 350 x 305 x 421 mm Accessories Rigid or flexible sniffer probe with different hose length Hybrid cable with 2, 5 or 10 m length Filter for probe protection Dedicated calibrated leaks Trolley Communication interface compatible with industrial standards
