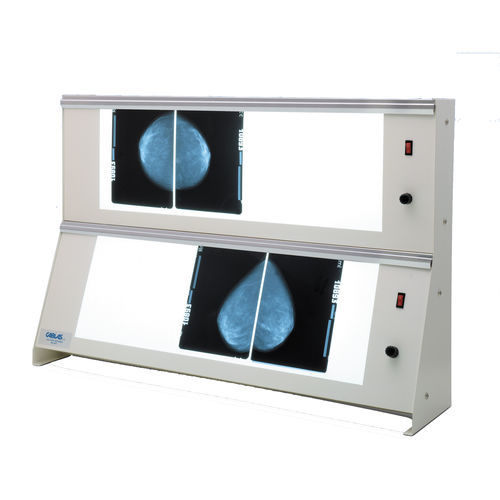

2-screen X-ray film viewer M-NM-01
for mammographywhite light

2-screen X-ray film viewer
2-screen X-ray film viewer
Add to favorites
Compare this product


Characteristics

Number of screens
2-screen
Other characteristics
for mammography, white light

Description

Stove enamelled steel structure 0,8 mm; Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment; Neon tubes 6.000°K ((other type of tubes available on request); Speed switching; Light regulator which allows a very good light regulation from 100% al 10%; Upper and/or central pressing rolls film holding system; Speed bipolar switch on the front (on request is possible to apply other type and/or their position); External fuses lagging type 5×20 (positioned on the bottom right side); Feeling cable with schuko plug CE 3 0,75; Predisposed for wall installation through expansion dowels; X-ray film viewer conforms to Directive 93/42/CEE – Medical Devices – Class 1 Moreover meets the Directive 73/23 CEE (Low tension) 89/336 CEE (Electromagnetic compatibility) The construction conforms to Norms EN 60601 -1,2 – Din 6856 -1,2; Can be installed in rooms as medical use (CEI 64-4); Feeding 230V / 50Hz; Maintenance : recurrent cleaning (each 6 months) of the whole screen and tubes replacement each 5.000 hours of use;
