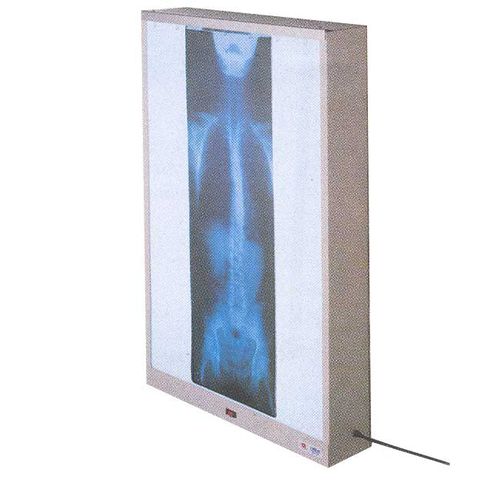

1-screen X-ray film viewer / white light

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
1-screen X-ray film viewer / white light 1-screen X-ray film viewer / white light
{{requestButtons}}

Characteristics

  • Number of screens:

    1-screen

  • Other characteristics:

    white light

Description

Data X-RAY FILM VIEWERS STANDARD SERIES :

Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment
Stove enamelled steel structure thickness 0,8 mm
Fire epoxy painting colour peel RAL 9010, upon structure cleaning treatment
Smelted opaline acrylic screen thickness 3 mm inserted into the structure
Neon tubes of 6.000°Kelvin (other type of tubes av ailable on request)
Upper and/or central pressing rolls film holding system
Bipolar switches on the front (on request is possible apply other type of switches and their position)
External fuses lagging type 5×20 (positioned on the bottom right side)
Feeding cable complete with plug and earth “Italian” type cm. 180 long (other type of plugs on
request)
Arranged for wall mounting installation through expansion dowels
Integrable with other optional devices like: lateral support for spot viewers and/or magnifying lens,
trolley on wheels, light intensity regulator.
X-ray film viewer conforms to Directive 93/42/CEE – Medical Devices – Class 1
Moreover meets the Directive 73/23 CEE (Low tension) 89/336 CEE (Electromagnetic compatibility).
Construction conforms to Norms EN 60601 -1,2 / Din 6856 -1,2
Feeding 230V / 50Hz + earth
Maintenance: recurrent cleaning (each 6 months) of the whole screen
