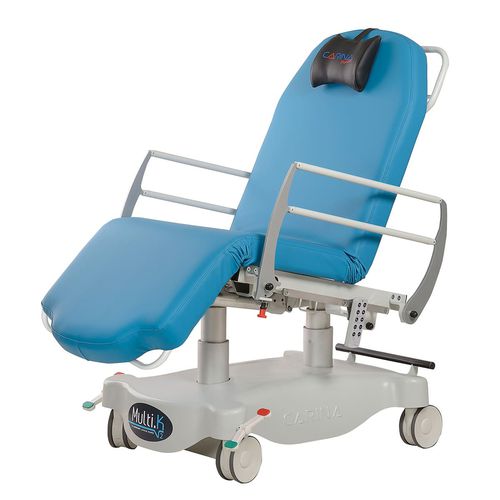

Electric treatment chair MULT-V2-700

Trendelenburgheight-adjustablewith adjustable backrest

Overview
This 3-section electric ambulatory chair is designed for outpatient and examination use. Seat width is 70 cm (overall width 85 cm). Electric height adjustment ranges from 56 to 96 cm. The monobloc memory-foam upholstery is 9 cm thick and class M1 fire retardant. Backrest and legrest adjust independently by electric actuators. Two memory positions (welcome and stretcher) are available on the multifunction hand remote. Mobility is ensured by four 150 mm wheels with a central brake and an integrated push handle. Trendelenburg function allows a quick emergency position. A paper roll holder is fitted behind the backrest. Base supplied in light grey RAL 7035 for easy cleaning. Designed and manufactured by Carina Medical (French made).

Upholstery - Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone
• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours

• Standard: RAL 7035
• Optional: RAL 9003, RAL 1013, RAL 1015, RAL 6019, RAL 6033, RAL 6000, RAL 5017, RAL 5002, RAL 5000, RAL 7016, RAL 9005, RAL 1018, RAL 3020, RAL 3003

Standard accessories included

• Paper roll holder on head side (behind backrest)
• Pair of DIN rails 2.5 x 1 cm
• Ergonomic headrest
• Push handle integrated into backrest
• Wheels Ø150 mm with central brake system

Product Features
Electric height adjustment: 56–96 cm via multifunction hand remote
Independent electric adjustment of backrest and legrest (electric jacks)
Memory foam monobloc upholstery, 9 cm thickness, fire retardant class M1
Seat width: 70 cm (overall width 85 cm)
Load capacity: 200 kg
Trendelenburg emergency position available
Footrest: not included on this model

Technical specifications

• Model reference: MULT-V2-700
• Type: 3-section ambulatory/patient chair (MULTIK V2 range)
• Height adjustment: electrically adjustable 56–96 cm (multifunction hand remote)
• Backrest and legrest: independent electric adjustment (electric jacks)
• Memory positions on hand remote: welcome and stretcher positions
• Upholstery: memory foam monobloc, thickness 9 cm, fire retardant class M1
• Seat width: 70 cm (overall width 85 cm)
• Load capacity: 200 kg
• Standard accessories: paper roll holder (behind backrest), pair of DIN rails 2.5 x 1 cm, ergonomic headrest, push handle in backrest, 4 wheels Ø150 mm with central brake
• Emergency: Trendelenburg function for rapid emergency positioning
• Base colour (standard): light grey RAL 7035; multiple optional RAL base colours available
• Designed and manufactured by Carina Medical (French made)
