General treatment chair MULT-V2-700-01

interventional procedureelectricTrendelenburg

Overview

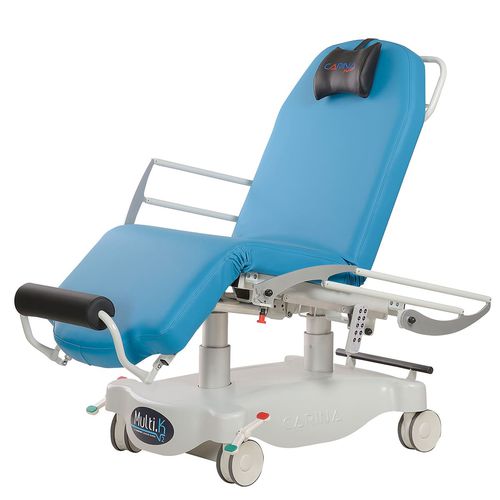

Three-section electric ambulatory chair designed for outpatient and procedure settings. Reference MULT-V2-700-01 from the MULTIK V2 range. Electric height adjustment (56–96 cm), independent electric adjustment of backrest and legrest, and a 70 cm seat width (overall width 85 cm). Upholstery is 9 cm memory foam certified fire retardant M1. Supplied with an ergonomic headrest, pair of DIN rails (2.5 x 1 cm) for accessory mounting, a gas-adjustable footrest and multifunction hand remote with memorized welcome and stretcher positions.

Upholstery colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone
• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours

• Standard: RAL 7035

Optional base colours

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Product Features (table)
Height (cm): Electrically adjustable from 56 to 96 cm
Type of control: Multifunction hand remote with memorized positions (welcome and stretcher)
Width: 70 cm (overall width 85 cm)
Upholstery thickness: 9 cm
Coating: Fire retardant M1 class
Load capacity: 200 kg
Accessories included in standard: Paper roll holder on head side; pair of DIN rails 2.5 x 1 cm; ergonomic headrest; push handle integrated into backrest; wheels diameter 150 mm with central brake system; adjustable footrest

Standard / Example accessories (optional or related accessories shown)

• Pair of stainless steel stirrups diam. 14 mm, without clamp — ACC 105
• Pair of legrests on knee system in black polyurethane diam. 14 mm, without clamp — ACC 964
• Stainless steel infusion stand diam. 16 mm, 2 plastic hooks, without clamp — ACC 32012
• Stainless steel infusion stand diam. 16 mm, 2 stainless steel hooks, without clamp — ACC 32014
• Battery, capacity 20 cycles (1 cycle = 1x height up/down + 1x backrest up/down) — ACC BATTERIE01
• Base colour in a different colour than the standard light grey — ACC-CAPOT
• 4 skids instead of wheels — ACC-FIXE
• Cover for legrests (ACC964) in upholstery — SLFEMIREPOSE
• Adaptation clamp in aluminium for fixation on rail dim. 25x10, diam. 14/16 mm — ACC CLAMEDIAM16
• Armrest for MULTV2 chair with fixation clamp to fix on rail dim. 25x10 — ACC MULTIK12
• Emergency position button — ACC MULTIK02
• Pair of retractable security side rails width 70 cm — ACC BARRMULV2-70
• Flexible remote holder length 65 cm with clamp — ACC MULTIK13

Technical specifications

• Reference shown on page: MULT-V2-700-01
• Series: MULTIK V2 range
• Configuration: 3 sections (seat / backrest / legrest)
• Height adjustment: Electric, from 56 to 96 cm
• Control: Multifunction hand remote with memorized positions (welcome and stretcher)
• Backrest & legrest: Independently adjustable by electric jacks
• Upholstery: Memory foam monobloc, thickness 9 cm, fire retardant M1
• Width: 70 cm (overall width 85 cm)
• Load capacity: 200 kg
• Mobility: 4 wheels diameter 150 mm with central brake system; push bar integrated into backrest
• Footrest: Supplied and adjustable with gas jack
• Emergency/Trendelenburg feature available
• Accessories included: paper roll holder (head side), pair of DIN rails (2.5 x 1 cm), ergonomic headrest, push handle, wheels with central brake, adjustable footrest
• Base: Shaped base in light grey (RAL 7035) for easy cleaning
• Manufacturing note: French made
