Electric treatment chair MULT-V2-600

Trendelenburgheight-adjustablewith adjustable backrest

Overview

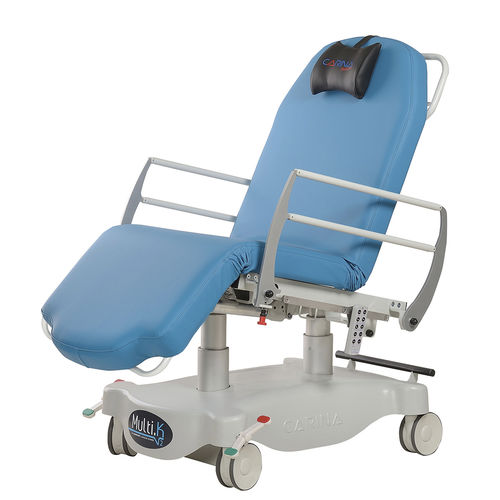

Three-section electric ambulatory chair designed for outpatient and long-duration patient use. Seat width 60 cm (overall width 85 cm). Memory-foam monobloc upholstery, 9 cm thick, fire retardant class M1. Ergonomic headrest included and two DIN rails (25 x 10 mm) for accessory fixation. Independently adjustable backrest and legrest operated by electric jacks. Two memorised positions (welcome and stretcher) on the multifunction hand remote for rapid configuration. Electric height adjustment 56–96 cm via multifunction hand remote. Four Ø150 mm wheels with central braking and integrated push bar for manoeuvrability. Trendelenburg function enables rapid emergency positioning. Delivered with a shaped base in light grey (RAL 7035) for easy cleaning.

Upholstery colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone
• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours

• Standard base colour: RAL 7035 (light grey)

Optional base colours

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Accessories included (standard)

• Paper roll holder at head side
• Pair of DIN rails dim. 25 x 10 mm
• Ergonomic headrest
• Integrated push handle in backrest
• Ø150 mm wheels with central brake

Associated accessories (examples with reference)

• Standard stainless-steel stirrups set Ø14 mm, without clamp — ACC 105
• Black legrest set on swivel, polyurethane foam, Ø14 mm, without clamp — ACC 964
• IV pole Ø16 mm, 2 plastic hooks, without clamp — ACC 32012
• Stainless IV pole Ø16 mm, 2 stainless hooks, without clamp — ACC 32014
• Battery with autonomy for 20 cycles (1 cycle = up/down + back up/down) — ACC BATTERIE01
• Base cover paint (other than standard grey RAL 7035), 16 colours — ACC-CAPOT
• 4 fixed glides — ACC-FIXE
• Legrest cover Prelude for ACC964, per unit — SLFEMIREPOSE
• Aluminium clamp for 25x10 rail, unit Ø14/16 mm — ACC CLAMEDIAM16
• Pair of legrests on swivel without clamp — ACC FEMINA964
• Gutter MULTIKA with clamp for 25x10 rail, unit — ACC MULTIK12
• Pair of stirrups without clamp — ACC FEMINA02
• Emergency position button — ACC MULTIK02
• Flexible remote holder 65 cm to fix on chassis with clamp — ACC MULTIK13
• IV pole 2 plastic hooks with clamp for 25x10 rail — ACC MULTIK03
• Reading shelf without clamp — ACC MULTIK05
• LED reading lamp with clamp — ACC-MULTIKALEDN

Product features

• Height: electrically adjustable from 56 to 96 cm
• Control type: multifunction hand remote
• Seat width: 60 cm (overall width 85 cm)
• Upholstery thickness: 9 cm
• Coating: fire retardant class M1
• Load capacity: 200 kg
• Accessories included: paper roll holder at head side; pair of DIN rails 25 x 10 mm; ergonomic headrest; integrated push handle; Ø150 mm wheels with central brake
• Footrest: without footrest

Characteristics / Technical specifications

• Reference: MULT-V2-600
• Model / Series: MULTIK V2 series
• Electric height adjustment range: 56–96 cm
• Independent electrically adjustable backrest and legrest (electric jacks)
• Memory-foam monobloc upholstery, thickness 9 cm
• Upholstery fire classification: M1
• Overall width: 85 cm (seat width 60 cm)
• Load capacity: 200 kg
• Mobility: 4 wheels Ø150 mm with central brake; push bar integrated in backrest
• Trendelenburg function for emergency position
• Welcome and stretcher positions memorised on hand remote
• Two DIN rails (25 x 10 mm) for accessory fixation
• Paper roll holder located behind the backrest
• Shaped base in light grey (RAL 7035) for easy cleaning
