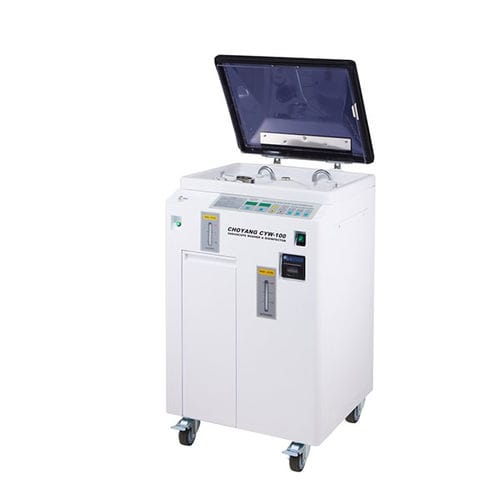

Endoscope washer-disinfector CYW-100

mobileautomaticUV

Product
Endoscope washer & disinfector CYW-100 designed for automated cleaning, leakage testing and disinfection of a single flexible endoscope.

Features

• Single-scope cleaning and disinfection cycle
• Leakage test (water type)
• Compatible with flexible endoscopes
• Fully automatic operating procedures
• Disc rotor for thorough washing and disinfection
• Multi-channel jetting system with 360° rotation
• Enhanced sensor package: basin full sensor, drainage sensor, water tank high & low level sensors, disinfectant tank low sensor
• Corrosion-resistant materials
• Visible cycle count display for disinfection monitoring

Optional

• Advanced water filtration system
• UV lamp for water disinfection
• UV light indicator
• Thermal control for disinfection cycles
• Self-disinfection system
• Alcohol purging system
• Printer connection

Specifications

• Leakage test: Water type
• Operating procedure (time): Washing – 10–110 sec, 2–5 min; Disinfection – 1–9 min, 10–60 min, 1–9 hr; Detergent – 30 sec (spray) / Immersion (max 5 min)
• Alcohol cycle (option): 5 sec
• Program mode (automatic): Washing - Detergent - Washing - Disinfection - Washing - Alcohol (option) - Air
• Tank capacity: Water 16 L; Detergent 1.5 L; Disinfectant 20 L; Alcohol 1.5 L
• Channel connection: 4 connection ports in basin (1 scope)
• Discharge: Rear panel compulsory discharge (1 outlet); Front door 3 outlets (water, disinfectant, detergent)
• Power: AC 220–230 VAC, 50/60 Hz
• Dimensions (WxDxH): 547 x 579 x 980 mm; Open height: 1320 mm
• Weight: 65 kg (80 kg option)
