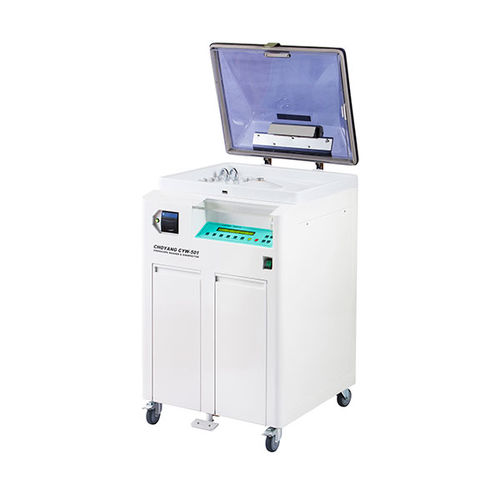

Endoscope washer-disinfector CYW-501

mobileautomaticUV

1. Dual scope cleaning and disinfection 2. Leakage test → Compatible with flexible scopes 3. Perfect washing and disinfection by disk rotor 4. Multi-channel jetting system rotated in 360° 5. Enhanced sensor package (basin full sensor, drainage sensor, level(high & low) sensor for water tank, low sensor for disinfectant tank) 6. Advanced materials for anti-corrosion 7. Alcohol process for drying channel inside 8. Printer system for database 9. U.V lamp for water tank 10. Indicator for U.V lamp(pre-carbon-micron[0.2]) 11. Self disinfectant system 12. Heating system for disinfectant 13. Deodorization system 14. Foot switch lid opening system 15. Visible count for disinfection cycle Specification Leakage Test Water type Operating Procedure (time) Washing - 10~90sec, 2min~5min Disinfection - 1 ~ 10 min, 15 ~ 55 min, 1 ~ 9 hr Detergent - 10-30 sec, 1min-5min ( Spray type ) Alcohol - 5 sec Program Mode (Random Type) - A mode: Washing-detergent-washing-disinfection-washing-alcohol-air B mode: Washing-detergent-washing-alcohol-air C mode: Washing-disinfection-washing-alcohol-air Channel connection 6 connection ports in a basin (2 Scope) Discharge 1 outlet (compulsory discharge on rear pannel) 3 outlets (in the front door – water , disinfectant, detergent) Power AC 220-230vac, 50/60Hz
