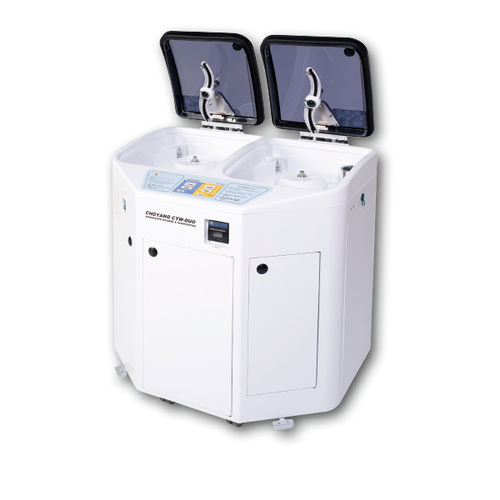

Endoscope washer-disinfector CYW-DUO

reprocessingmobileautomatic

– Easy to use foot switch for hands-free lid operating system – 7” wide TFT LCD touch screen with independent operating system – Spray arm located at top cover for dynamic washing – Full time leakage monitoring of endoscopes – Continuous channel monitoring of endoscopes – Barcode reading system (optional) – Disinfection heating system [Max. 55 – Advanced external water filtration system with standard bacteria retention micron [0.2] water filter – Cycle report documentation by dynamic printing system – Full automatic reprocessing system & each process can be selectable & operated manually – Self disinfection system – Indicating system for counting of use for disinfectant – Indicating system of changing disinfectant by period of date – UV lamp indicator – Compatible system for all kind of chemicals – Filter for disinfectant – Barcode / Printer system Specification Leakage Test Water / Air type Operating Procedure (time) Washing: (off), 10~250sec Detergent: (off), 10~600sec Disinfection: 0sec (off), 1~120min Alcohol process: (off), 10~250sec Air Dry process : (off), 10~250sec Program Mode (Random Type) ex) : Washing-air-detergent-air-washing2-air-disinfection-air-washing3-air-alcohol-air ** All processes can be changeable by user's choice and the function(water fill in the basin before & after disinfection) can be added ** Channel connection 4 connection ports in a basin each(one is for leakage port, three is for channel connection port)Discharge Discharge 2 Outlets(Compulsory discharge on rear pannel) 5 Outlets(in front) Power AC AC 220 ~ 230VAC, 50/60Hz
