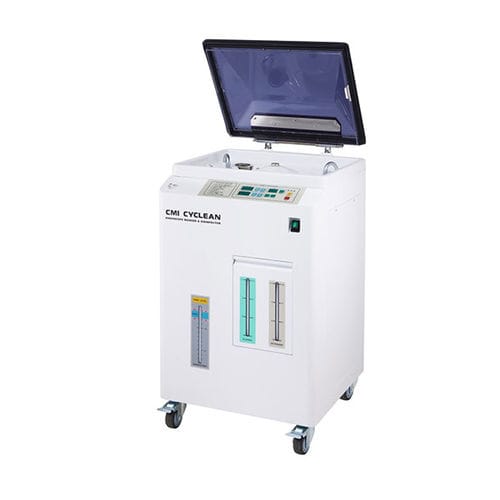

Endoscope washer-disinfector CYCLEAN

reprocessingmobileautomatic

Product
CYCLEAN is an endoscope washer & disinfector designed for single-scope reprocessing in clinical environments. It integrates a 360° multi-channel jetting system, water-type leakage testing and selectable automatic programs for detergent and alcohol purging. The unit uses anti-corrosion materials and an enhanced sensor package with an intuitive user control display for simplified operation.

Key features

• Single scope cleaning and disinfection
• Water-type leakage test
• Multi-channel jetting system with 360° rotation
• Full Automatic A mode with selectable detergent and alcohol purging
• Short-cycle Automatic B mode for rapid disinfection
• Corrosion-resistant materials
• Enhanced sensor package for process monitoring
• Intuitive user control display

Technical specifications

• Leakage test: Water type
• Operating procedure (times): Washing 10 sec – 9 min 50 sec; Disinfection 1 min – 6 hr 59 min; Detergent 20 sec; Alcohol 10 sec
• Tank capacities: Detergent 1.5 L; Alcohol 1.5 L; Disinfectant 15 L
• Power: AC 220–230 VAC, 50/60 Hz
• Dimensions (WxDxH): 550 x 570 x 960 mm
• Weight: 50 kg

Program modes

• Automatic A mode: Washing → Detergent → Washing → Disinfectant → Washing → Alcohol → Air
• Automatic B mode: Disinfectant → Washing → Alcohol → Air (short cycle)
• Manual mode: Leak test / Washing / Disinfectant / Drain / Air / Retank / Discharge / Alcohol

Included accessories (standard)

• Main body
• Endoscope grid
• Accessory basket
• Channel tube connector (3 pcs)
• Residual drain tube
• Suction tube
• Power cord
• Leakage tester coil tube (30 cm)
• Leak test connecting cap (optional)
• Channel connector adapter (optional)
• Water supply & drain adapter

Applications

• Designed for endoscope reprocessing in hospitals, clinics and outpatient centers
• Suitable for flexible endoscopes requiring single-scope automated processing
• Intended for use by trained healthcare personnel following local infection-control protocols
