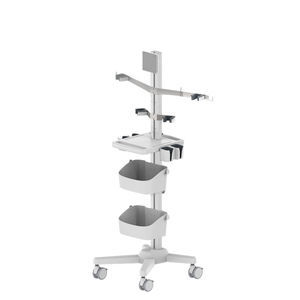

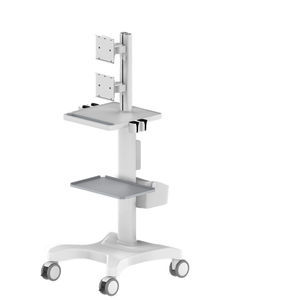

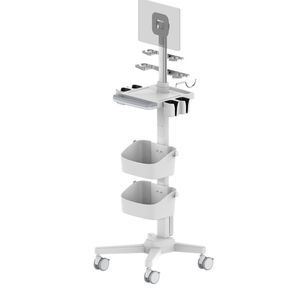

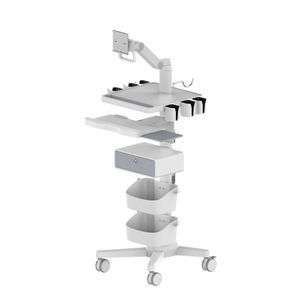

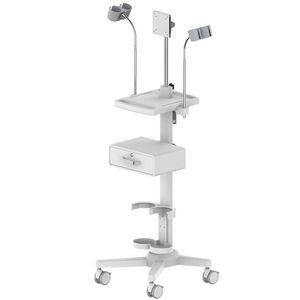

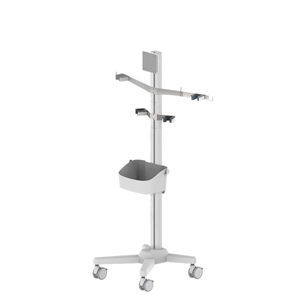

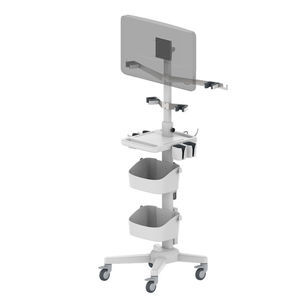

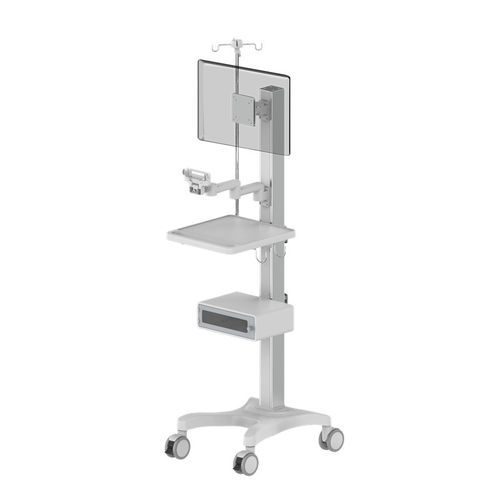

Emergency cart TR700-200-1

hospitalendoscopytransport

Product overview

• Height adjust method: mechanical lifting
• Height adjustment range: 1400 mm
• Casters: 4" with brake
• Materials: aluminium, steel plate, ABS/PC
• Channel length: 1400 mm
• Screen bracket max load: 10 kg; table max load: 5 kg; keyboard holder max load: 2.5 kg
• Screen tilt angle: 0~15°; horizontal rotation: ±90°

Recommended accessories

• ABS tabletop 430 × 400 mm — A016-11066 / COR-0044
  • Positioning pads included
  • Material: integral-molded ABS
  • Overall dimensions: 430 × 400 mm (L × W)
  • Effective working area: 343 × 379 mm
• Small drawer with view — 352 × 245 × 200 mm
  • Size: 352 × 245 × 200 mm
  • Maximum load in drawer: 2 kg
• IV pole
  • Material: stainless steel + ABS
• Pivot arm (334 mm)
  • Arm length: 334 mm
  • Swivel range: ±90°
  • Tilt range: 0 ~ -25° or 0 ~ -120°
  • Total arm max load: 30 kg; tilt mechanism max load: 15 kg
  • Application: patient monitor, screen
• Flush pivot arm (130 mm)
  • Arm length: 130 mm
  • Swivel range: ±90°
  • Tilt range: 0 ~ -25° or 0 ~ -120°
  • Total arm max load: 30 kg; tilt mechanism max load: 15 kg
  • Application: patient monitor, screen
• Winder — pole mounting
  • Material: ABS

Basic information
Model: TR700-200-1
Brand: CORITON
Height adjust method: Mechanical lifting
Height adjustment range: 1400 mm
Channel length: 1400 mm
Casters: 4" (all with brake)
Material: Aluminum, steel plate, ABS/PC
Screen bracket max load: 10 kg
Table max load: 5 kg
Keyboard holder max load: 2.5 kg
Screen tilt angle: 0~15°
Screen horizontal rotate: ±90°


Product description
CORITON TR700 is engineered as a mobile workstation for cystoscopy/uroscopy and related endoscopic or laryngoscopic applications. It provides a mechanically adjustable column, integrated mounting channel and modular accessory options to support monitors, keyboards and clinical instruments. The cart is designed for hospital wards, outpatient clinics, emergency departments and diagnostic units where compact mobility, organized accessory integration and repeatable device positioning are required. The product supports OEM/ODM trolley and mounting configurations for clinical equipment.


Technical specifications

• Model: TR700-200-1
• Brand: CORITON
• Height adjust method: Mechanical lifting
• Height adjustment range: 1400 mm
• Channel length: 1400 mm
• Screen bracket max load: 10 kg
• Table max load: 5 kg
• Keyboard holder max load: 2.5 kg
• Screen tilt angle: 0 ~ 15°
• Screen horizontal rotation: ±90°
• Casters: 4" (with brake)
• Materials: aluminium, steel plate, ABS/PC
