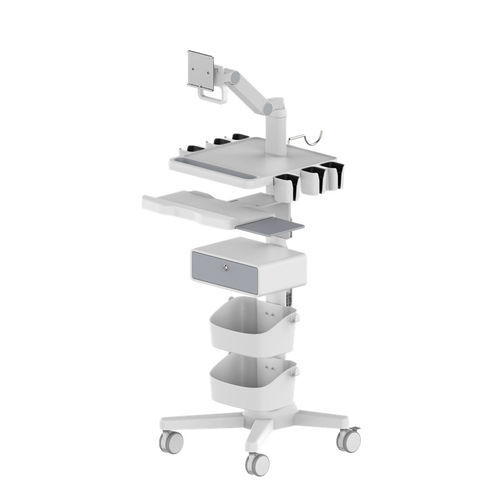

Emergency trolley RS008

hospitalfor monitorsfor laryngoscope

Product description CORITON RS008 is designed as a laryngoscope cart and mobile patient-monitor/laptop trolley for laryngoscope and bronchoscope workflows. It is suitable for hospital wards, outpatient rooms, emergency departments, diagnostic areas and mobile clinical workflows where stable device support, organised accessory storage and reliable movement between care areas are required. The RS008 supports OEM/ODM integration for medical trolley and mounting projects requiring modular installation, robust structure and neat cable/equipment routing.

Specification (listed on product section)

• Model: RS008
• Brand: CORITON
• Screen bracket max load: 3 kg
• Table max load: 3 kg
• Screen tilt angle: 0~15°
• Screen swivel range: ±90°
• Caster: 3” (all with bracket)
• Material: Aluminum, Steel plate, ABS/PC

Basic information (table)
Model: RS008
Brand: CORITON
Screen bracket max load: 5 kg
Table max load: 3 kg
Screen tilt angle: 0~15°
Screen swivel range: ±90°
Caster: 3” (all with bracket)
Material: Aluminum, Steel plate, ABS/PC

Recommended accessories

• Small drawer with lock - 352*245*200 mm
  • Size: 352*245*200 mm
  • Maximum weight load in drawer: 2 kg
• Display arm – Spring arm
  • Rotation: 360°
  • Pitch angle: -45° ~ 90°
  • Left and right swing: ±90°
  • Load bearing range: 1.5–8.5 kg; 8–16 kg
  • Lifting range: 410 mm
  • Display size: up to 30 inches
• Probe cup holder - B015-10193 / COR-0052-Umedwings
  • Size: φ27 mm
  • Depth: 80 mm
  • Material: ABS
• Printer tray - 410*263 mm
  • Size: 410*263 mm
  • Fence height: 15 mm
• Bin with cable hooks
  • Dimensions: 340*213*149 mm
  • Material: ABS
• Probe holder
  • Front hole: 25 mm; Rear hole: 28 mm
  • Depth: 30 mm
  • Material: Silicone, Aluminum alloy

Technical features / specifications

• Model: RS008
• Brand: CORITON
• Screen bracket max load: 3 kg (basic information also lists 5 kg)
• Table max load: 3 kg
• Screen tilt angle: 0~15°
• Screen swivel range: ±90°
• Caster: 3” (all with bracket)
• Materials: Aluminum, Steel plate, ABS/PC
