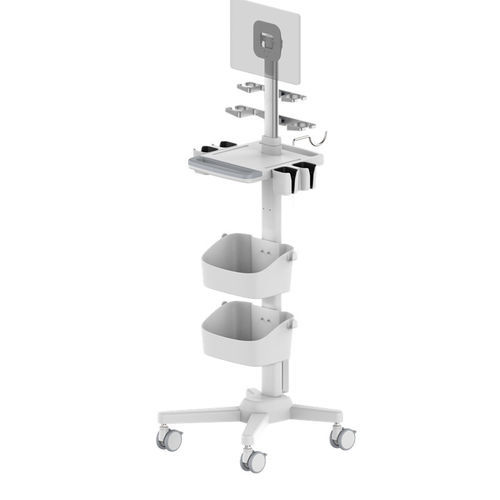

Medical trolley RS008

for endoscopesfor ultrasound systemsfor laryngoscope

Product overview
CORITON RS008 is a medical equipment trolley designed for ultrasound, laryngoscope and endoscopy use. It provides a compact workstation with adjustable height for hospital wards, outpatient rooms, emergency departments and mobile clinical workflows, enabling organised accessory mounting and stable device support. The RS008 supports OEM/ODM integration for medical trolley and mounting projects that require practical installation and durable structure.

Specification (listed)

• Model: RS008
• Brand: CORITON
• Screen bracket max load: 3 kg (specification section)
• Table max load: 2 kg
• Screen tilt angle: 0–15°
• Screen horizontal rotate: ±90°
• Casters: 3-inch (all with brake)
• Material: Aluminum, steel plate, ABS/PC

Basic information table (page)
Model: RS008
Brand: CORITON
Screen bracket max load: 5 kg (basic information table)
Table max load: 2 kg
Screen tilt angle: 0–15°
Screen horizontal rotate: ±90°
Casters: 3-inch (all with brake)
Material: Aluminum, steel plate, ABS/PC

Recommended accessories

• Probe cup holder - B015-10193/COR-0052-Umedwings
  • Size: φ27 mm
  • Depth: 80 mm
  • Material: ABS
• Printer tray
  • Size: 410×263 mm
  • Fence height: 15 mm
• Bin with cable hooks
  • Dimensions: 340×213×149 mm
  • Material: ABS
• Probe holder
  • Front hole: 25 mm; Rear hole: 28 mm
  • Depth: 30 mm
  • Material: Silicone, aluminum alloy
• Power adapter socket storage (accessory)
• Power adapter socket storage 2 (accessory)

Notes
There is an inconsistency on the page regarding the screen bracket maximum load: one specification section lists 3 kg while the basic information table lists 5 kg. Table max load is consistently shown as 2 kg.

Technical specifications

• Model: RS008
• Brand: CORITON
• Primary applications: laryngoscope cart, ultrasound trolley, endoscopy cart
• Environments: hospital wards, outpatient rooms, emergency departments, diagnostic areas, mobile clinical workflows
• Height range: 1068–1450 mm
• Screen tilt angle: 0–15°
• Screen horizontal rotate: ±90°
• Table max load: 2 kg
• Screen bracket max load: 3 kg (see note)
• Casters: 3-inch with brake
• Material: Aluminum, steel plate, ABS/PC
• Supports OEM/ODM customization for medical trolley and mounting projects
