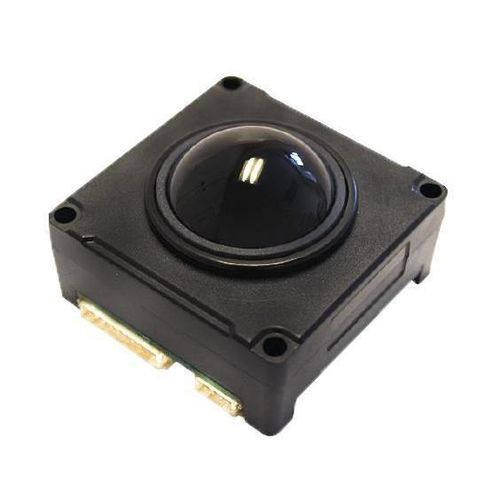

Medical device trackball P38 Compact

retroilluminated

Product overview
The P38 Compact Series mechanical trackball is a compact, back-of-panel mountable pointing device intended for demanding industrial and OEM applications. It is designed for integration into keyboards and operator consoles where space is limited and reliable operation is required.

Features

• Sealing up to IP65 (BS EN 60529)
• Outputs: TTL Quadrature, PS/2 and USB
• Smooth operation in rugged environments
• Stainless steel shaft and bearings for long service life
• Multiple top-plate configurations to adjust sealing and tracking force
• Optional backlit ball variants
• Custom connector options
• Optional anti-vandal kit available

Applications

• Industrial control systems
• Medical systems
• Navigation systems
• Compact and embedded keyboards
• Operator consoles and HMIs
• OEM custom solutions and integrations

Technical specifications

• Design: Compact mechanical trackball for demanding/professional environments
• Mounting: Back-of-panel mounting for OEM keyboards and consoles
• Sealing: Up to IP65 (BS EN 60529)
• Outputs: TTL Quadrature; PS/2; USB
• Mechanical construction: Stainless steel shaft and bearings
• Top plate: Multiple configurations available to adjust sealing and tracking force
• Options: Backlit ball variants; custom connector choices; anti-vandal kit
