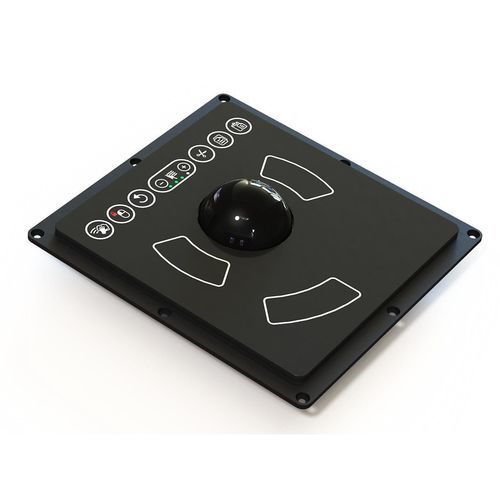

Medical device trackball MX5 M-Track

touch-sensitive

Product overview
The MX5 M-Track is a touch-track trackball module combining hybrid capacitive touch controls with an IP68 sealed trackball. It features a magnetic ball retention system and a single continuous surface to enable fast servicing, thorough decontamination and straightforward integration into industrial-grade control panels.

Key features

• Hybrid Capacitive Touch-Track technology for touch gestures and precision tracking
• Composite USB interface (keyboard and mouse HID)
• Integrated trackpad area for multi-touch gestures and inputs
• IP68 sealing for washdown and harsh environments
• Unique magnetic ball retention for quick removal and cleaning
• No moving parts other than the trackball
• Control dashboard for adjustment of trackball and panel performance
• Single continuous surface to simplify cleaning, decontamination and sterilisation
• Panel lock feature to support safe cleaning procedures

Applications

• Industrial control consoles and HMIs
• Medical systems requiring sterilisable inputs
• Marine and offshore control panels
• Custom keyboard and OEM integrations
• Environments requiring frequent washdown and decontamination

Technical specifications

• Sealing: IP68
• Technology: Hybrid Capacitive Touch-Track
• Interface: Composite USB (keyboard and mouse HID)
• Trackpad: Dedicated area for multi-touch gestures and inputs
• Ball retention: Magnetic retention system for rapid servicing and decontamination
• Mechanical: No moving parts except the trackball
• Surface: Single continuous surface for cleaning, decontamination and sterilisation
• Controls: Onboard control dashboard for performance adjustment
• Panel features: Lock function to support cleaning procedures
• Target markets: Industrial, Medical, Marine, Custom keyboard and OEM solutions
