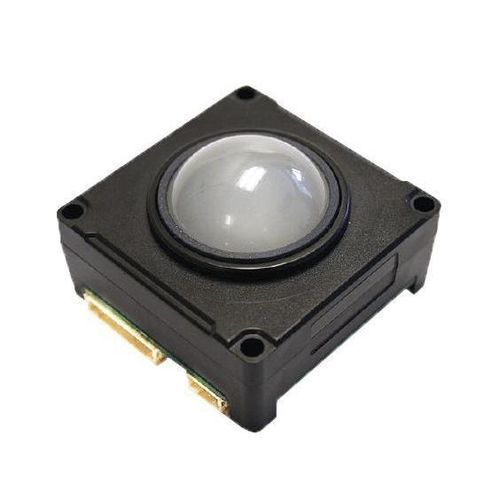

Medical device trackball P38 Standard

retroilluminated

Product overview
The P38 Compact Series backlit trackballs feature an LED-lit 38 mm ball available in multiple colours. Designed for back-of-panel mounting, the unit is intended for integration into OEM keyboards and consoles and for operation in low-light environments.

Key features

• Sealing options up to IP65 (BS EN 60529)
• Outputs: PS/2 and USB (auto-select)
• LED backlit ball in various colours
• Smooth operation suitable for rugged environments
• Stainless steel shaft and bearings
• Multiple top-plate configurations for sealing and tracking-force options
• Custom connector options
• Optional anti-vandal kit

Applications

• Control systems
• Medical systems
• Navigation systems
• Compact keyboards
• Industrial consoles
• OEM custom solutions

Downloads

• DS38036_USBPS2_Website.pdf
• DS38006_Quad_Website.pdf

Technical specifications

• Series: P38 Compact Series (Backlit)
• Ball diameter: 38 mm
• LED backlit ball available in multiple colours
• Sealing: up to IP65 (BS EN 60529)
• Outputs: PS/2 and USB (auto-select)
• Shaft and bearings: stainless steel
• Top plate: multiple configurations for sealing and tracking force
• Connector: custom options available
• Optional hardware: anti-vandal kit
• Mounting: designed for back-of-panel mounting in OEM keyboards and consoles
