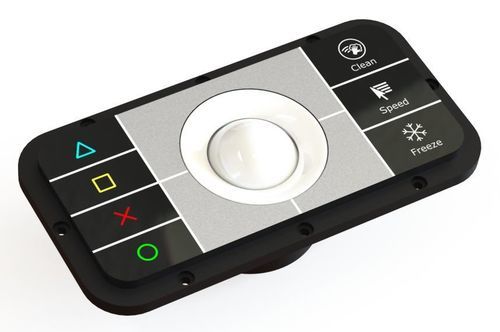

Medical device trackball M-Track

touch-sensitiveretroilluminated

Overview
In addition to standard configurations, Cursor Controls uses trackball and touchpad core technologies to produce bespoke M-Track units designed for seamless integration into custom user-interface panels. M-Track solutions offer configurable options including ball size and color, overlay design, button functions, LED illumination, and audible and haptic feedback.

Features

• Hybrid capacitive touch-track technology
• Composite USB electrical interface (keyboard and mouse)
• Custom touch area with integrated function keys
• Custom decals and color schemes
• IP68 sealing
• Unique magnetic ball retention
• No moving parts other than the ball
• Single continuous surface to facilitate cleaning, decontamination and sterilisation
• Audible and kinaesthetic (haptic) feedback
• Panel lock feature to support cleaning of the control panel

Applications

• Medical systems
• Custom keyboard applications
• OEM custom solutions

Technical specifications

• Core technologies: trackball and touchpad hybrid
• Touch technology: Hybrid capacitive touch-track
• Electrical interface: Composite USB (keyboard and mouse)
• Customisation options: ball size and colour, overlay design, decals, button functions, LED illumination
• Feedback: audible and kinaesthetic (haptic)
• Sealing: IP68
• Ball retention: unique magnetic retention system
• Mechanical: no moving parts except the ball
• Surface: single continuous surface for cleaning, decontamination and sterilisation
• Additional: panel lock feature to support cleaning of the control panel
