Intel® Core i7 medical panel PC CyberMed G24

Intel® Core™ UltraIntel® Core i5for intensive care service

Overview

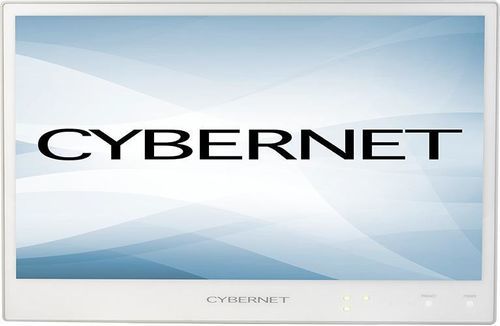

The CyberMed G24 is a 24-inch medical-grade all-in-one PC engineered for surgical and anesthesia environments. It features a fanless antimicrobial housing, integrated/uninterruptible power options, and IEC 60601-1 electrical safety certification to support continuous, mission-critical clinical workflows.

Key Features

• Fanless, antimicrobial design suitable for clinical and surgical suites
• IEC/UL/cUL 60601-1 near-patient electrical safety certification
• Latest Intel® i5 / i7 (Core™ Ultra options) CPU support
• 24" Full HD (1920x1080) display with 400 nits brightness; optional 2K (2560x1440)
• PCAP multi-touch (surgically precise) with optional anti-glare and embedded privacy filters
• Up to 64GB DDR5 memory (2x SO-DIMM sockets)
• Internal UPS battery option (provides up to ~4 hours backup for critical use)
• IP65 sealed front bezel (IPX1 back cover) for resistance to disinfectants and cleaning
• EMR-ready and SSO-ready (designed for major EMRs such as Epic, Oracle Cerner)
• Connectivity: dual 2.5GbE LAN, USB-C (10Gbps) with PD, USB 3.2/2.0, DisplayPort, optional RS232/422/485 expansion
• Wireless: Intel WiFi 7 + Bluetooth 5.4

Applications & Benefits
Designed for 24/7 patient care in anesthesia, intensive care, operating rooms, bedside and point-of-care scenarios. Passive cooling eliminates fan exhaust and dust ingress; antimicrobial resin and sealed front allow thorough sanitization with common hospital disinfectants. Integrated power redundancy and medical-grade power supplies minimize downtime during power events.

Technical specifications
Display: 1920x1080 | 16:9 | 178°/178° Viewing Angle; optional 2560x1440
CPU Support: Latest Intel® i5/i7 Processors (Core™ Ultra options available)
Memory: 2x DDR5 SO-DIMM Sockets, populated up to 64GB
Operating System: Windows 11, Windows IoT, Linux
Video & Graphics: Integrated Intel Graphics
Touch Screen: PCAP Multi-Touch with optional anti-glare technology (surgically tuned for gloved use)
Networking: 1x 2.5Gigabit LAN (Intel i226LM), 1x 2.5Gigabit LAN (i226V)
DC Power Out: Optional DC power out for external devices
Wireless: Intel WiFi 7 + Bluetooth 5.4
Expansion Slots: 1x mPCIe full-size slot; 1x M.2 A/E Key slot
Storage: 1x 6Gbps SATA III; 1x M.2 B/M Key slot for NVMe SSD
TPM: Version 2.0 standard
Power Supply: Medical grade universal input 100~240V AC; Output 19V; optional 12V/24V with DC converter
IP Rating: IP65 sealed front bezel; IPX1 back cover
Pressure: 700 to 1060 hPa (0~3000 meters)
Dimensions: 22.32" x 14.23" x 2.02" (L x W x D)
Weight: 14.8 lbs
Wall Mount: Supports 100 mm VESA mounting holes
Environment: Operating temperature 0°C ~ 35°C
Relative Humidity: 10% ~ 90% (non-condensing)
Certifications: UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1; FCC Class B; CE; Energy Star; RoHS; WEEE; REACH
I/O Ports: 4x USB 3.2 Gen1; 2x USB 2.0 (side); 1x USB-C (10Gbps) with up to 15W PD; 1x RS232/422/485 (optional up to 6); 1x DisplayPort; 1x 4-pin DIN power jack
Audio: Realtek High Definition Audio; two built-in 3.0W speakers; one combo jack for line out/mic
Warranty: 3 years standard; optional plans up to 5 years (US only)

Specifications (summary)

• Model: CyberMed G24
• Display: 24" FHD (400 nits) or optional 2K
• CPU: Latest Intel® i5 / i7 (Core™ Ultra options available)
• Memory: Up to 64GB DDR5
• Storage: SATA III + NVMe M.2 support
• Networking: Dual 2.5GbE; WiFi 7 + Bluetooth 5.4
• Touch: PCAP multi-touch, glove-capable; optional anti-glare/privacy
• Power: Medical-grade PSU; optional internal UPS battery
• IP Rating: IP65 front
• Security: TPM 2.0, SSO readiness
• Certifications: IEC/UL/cUL 60601-1 family; FCC/CE and environmental regs
