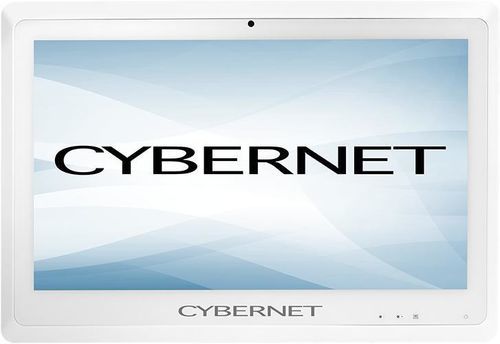

Intel® Core i7 medical panel PC CyberMed S24

Intel® Core i5Intel® Core™ Ultra 7Intel® Core™ Ultra 5

Overview The CyberMed S24 is engineered for specialized clinical environments that demand precision, uninterrupted operation and rigorous infection control. It integrates a 24" FHD medical-grade touch display, fanless cooling, antimicrobial housing and an IP65-sealed front bezel for use in operating rooms, intensive care and bedside documentation.

Key Features

• 24" FHD wide-view display with high contrast and optional anti-glare
• Fanless passive cooling to minimize noise and reduce airborne contamination
• Medical-grade PCAP multi-touch with high-precision calibration for use with surgical gloves
• Antimicrobial housing and IP65 sealed front bezel for frequent hospital-grade disinfection
• Optional internal UPS battery for continuous operation during power transitions
• Support for latest Intel® Core™ processors (i5 / i7 / Core™ Ultra) and integrated Intel graphics
• Optional AI Neural Processing Unit (NPU) accelerator
• Up to 64GB DDR5 memory (2x SO-DIMM)
• OS support: Windows 11, Windows IoT, Linux
• Multiple expansion slots and flexible I/O for clinical peripherals
• Versatile mounting compatibility (100mm VESA) for wall arms, anesthesia machines or carts

Applications & Design Highlights

• Designed for operating rooms, critical care and point-of-care where high uptime and infection control are essential
• Sealed front and washable housing withstand repeated disinfection with common hospital-grade disinfectants
• Optional embedded privacy filters and anti-glare options for harsh lighting environments
• OEM/ODM configuration services available: custom BIOS, OS imaging, asset tagging and deployment-ready imaging

Specifications

• Display: 1920x1080 | 16:9 | 250 nits | 178°/178° viewing angle | 3000:1 contrast ratio
• CPU Support: Latest Intel® i5 / i7 (and Intel® Core™ Ultra 5/7 options)
• Memory: 2x DDR5 SO-DIMM sockets, up to 64GB total
• Operating System: Windows 11, Windows IoT, Linux
• Video & Graphics: Integrated Intel Graphics
• Touch Screen: PCAP multi-touch with optional anti-glare coating
• Networking: 1x Intel i226LM 2.5GbE LAN + 1x i226V 2.5GbE LAN
• DC Power Out: Optional DC power out for external devices (webcam, monitor)
• Wireless: Intel WiFi 7 + Bluetooth 5.4 (optional vPro variant)
• Expansion Slots: 1x mPCIe half-size, 1x M.2 A/E key, 1x M.2 2230 B/M key
• Storage: 1x SATA III 6Gbps port (configurable 2.5" SSD or NVMe options)
• TPM: Version 2.0 standard
• Power Supply: Medical-grade universal input 100~240V AC, supports DC18V-19V output; optional DC converters for 12V/24V systems
• IP Rating: IP65 sealed front bezel; IPX1 back cover
• Pressure: 700 to 1060 hPa (0~3000 meters)
• Dimensions: 23.50" x 14.80" x 2.10" (L, W, D)
• Weight: 17.75 lbs
• Wall Mount: Supports 100mm VESA mounting holes
• Environment: Operating temperature 0°C ~ 35°C
• Relative Humidity: 10% ~ 90% (non-condensing)
• Certifications: UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1; FCC Class B; CE; Energy Star; RoHS; WEEE; REACH
• I/O Ports: 4x USB 3.2, 2x USB 2.0, 1x USB-C, 1x RS232/422/485 (optional up to 6), 1x DisplayPort, 1x 4-pin DIN power jack
• Audio: Realtek High Definition Audio, two built-in 2.0W speakers, one combo audio jack (line out / mic)
• Warranty: 3 years standard (US) with optional plans up to 5 years
