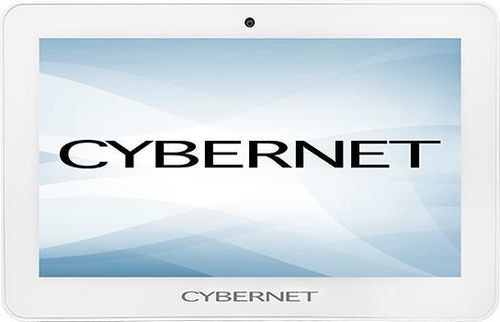

Intel® Alder Lake-N medical panel PC CyberMed M12

for computer cartsfor nursesfor healthcare facilities

Product Overview
The CyberMed M12 is a medical-grade 11.6in panel PC designed for near‑patient clinical environments. It supports Power over Ethernet (PoE/PoE++ options) to reduce reliance on local AC outlets. The fanless, slim chassis provides silent, continuous operation for bedside, wall-mount, kiosk and cart installations, with IP65 front sealing and antimicrobial enclosure treatment for rigorous cleaning protocols.

Key Features

• PoE / PoE++ power delivery options to avoid local AC outlets
• Fanless silent cooling to minimise airborne contaminants and noise in clinical areas
• IP65 sealed front bezel and IPX1 back cover for protection against liquids and dust
• Antimicrobial enclosure treatment to limit microbial degradation of the housing
• 11.6in FHD wide-view display with PCAP multi-touch
• Up to 16GB DDR5 (single SO‑DIMM)
• Intel Alder Lake N150 (Twin Lake) CPU support with Intel HD Graphics
• Multiple I/O: USB 3.2, USB 2.0, HDMI, RS-232 (expandable), 2.5Gb/1Gb LAN
• Optional integrated peripherals: 2D barcode scanner, RFID reader (Imprivata SSO certified), internal 5MP webcam
• Supports Windows 11, Windows IoT and Linux

Highlights

• PoE Power Delivery: supports PoE+ (802.3at Type 2, 30W) and PoE++/802.3bt (60W / 100W) depending on configuration; internal UPS battery models require higher-power PoE++/Ultra (60W+)
• Fanless construction reduces airborne particle spread and ensures quiet operation for patient recovery areas
• IP65 front bezel engineered for rigorous chemical disinfection
• Universal VESA compatibility (75mm) for flexible wall, arm, kiosk or cart mounting
• Designed for 24/7 clinical use with long product life cycle and high reliability
• Regulatory and safety compliance suitable for near-patient deployment

Technical Specifications

• Display: FHD LED panel, 1920 x 1080, 300 nits, 178°/178° viewing angle, 800:1 contrast
• CPU Support: Intel Alder Lake N150 Processor
• Memory: 1x DDR5 SO‑DIMM socket, up to 16GB (DDR5 4800/5600MHz options)
• Operating System: Windows 11, Windows IoT, Linux
• Graphics: Intel HD Graphics
• Touch: PCAP multi-touch (optional anti-glare or embedded privacy filter)
• Networking: 1x Gigabit (Intel i226V); optional 2.5Gb LAN / optional PoE configurations
• PoE Support: PoE+ (802.3at Type 2, 30W) and PoE++ (802.3bt, 60W / 100W) for higher-power and internal UPS models
• Wireless: Intel WiFi 7 + Bluetooth 5.4 (optional removable wireless)
• Expansion: 1x M.2 2242 B/M slot (unavailable with PoE option), 1x M.2 2230 A/E slot
• Storage: 128GB SSD standard, configurable up to 2TB (various 2.5" and half-size SSD options)
• TPM: 2.0 standard
• Power Supply: 72W medical-grade PSU (AC 100–240V) with optional DC converter for 12V/24V
• IP Rating: IP65 front bezel, IPX1 back cover
• Dimensions: 12.06in x 7.76in x 1.42in (L x W x D)
• Weight: 3.6 lbs
• Wall Mount: supports 75mm VESA
• Environment: Operating 0°C to 40°C; Humidity 10%–90% non-condensing
• Certifications: IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1, FCC Class B, CE, Energy Star, RoHS, WEEE, REACH
• I/O: 4x USB 3.2, 2x USB 2.0, 1x audio combo jack, 1x HDMI, 1x RS232 (expandable to 4 COM), 1x 2.5Gb LAN (optional 10/100 PoE)
• Audio: Realtek HD Audio, line out and microphone jacks, built-in 2.0W stereo speaker
• Warranty: 3 years standard, optional plans up to 5 years (country-specific)
