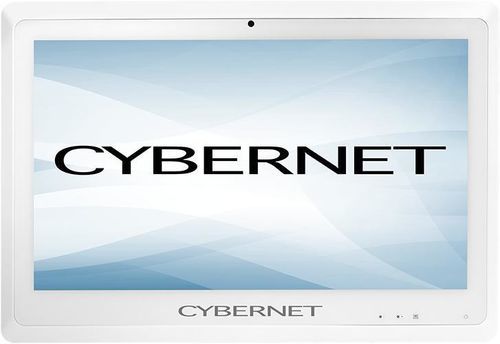

Intel® Alder Lake-N medical panel PC CyberMed M22

for healthcare facilitiesall-in-oneSSD 128 GB

Overview
The CyberMed M22 is a medical-grade all-in-one touch workstation built for clinical environments. It supports Power over Ethernet (PoE++) to reduce cabling and enable deployment without direct AC outlet access. The unit features fanless cooling, an IP65-sealed front bezel for infection control, and a 21.5" FHD wide-view display suitable for point-of-care workflows. Compatible with Windows and Linux; configurable for RFID, barcode scanning and internal UPS options.

Key features

• Intel Alder Lake N150 Processor
• 21.5" FHD wide-view display (1920x1080), 250 nits
• Fanless silent cooling for continuous operation
• IP65 sealed front bezel and IPX1 back cover
• Power over Ethernet support (PoE++ / 802.3bt for full power)
• Up to 16GB DDR5 (1x SO-DIMM)
• Optional Imprivata SSO-certified RFID reader (Seos)
• Optional integrated 2D barcode scanner
• Optional internal UPS battery for extended backup

Technical specifications
Display: FHD LED Panel | 1920x1080 | 250 nits | 178°/178° | 3000:1 contrast ratio
CPU: Intel Alder Lake N150
Memory: 1x DDR5 SO-DIMM, up to 16GB (DDR5 4800/5600MHz depending on config)
Storage: 128GB SSD standard, configurable to 2TB; optional 2.5" SSD
Graphics: Intel HD Graphics
Touch: PCAP multi-touch (optional anti-glare/privacy filter)
Networking: Intel i226V Gigabit LAN; optional 2.5GbE; PoE++ (802.3bt) required for full PoE power
Wireless: Intel WiFi 7 + Bluetooth 5.4 (optional/ removable)
Expansion: M.2 2242 B/M (may be unavailable with PoE), M.2 2230 A/E
Security: TPM 2.0
Power: 72W medical-grade PSU (AC 100–240V) ; optional DC converter for 12V/24V
I/O: USB 3.2 x4, USB 2.0 x2, HDMI, Audio combo jack, RS232 (expandable), LAN
Dimensions & Weight: 21.75" x 14.50" x 1.92"; approx. 15.35 lbs
Operating: 0°C–40°C; 10%–90% non-condensing humidity

Compliance & Warranty

• Certifications: IEC 60601-1, IEC 60601-1-2, EN 60601-1, IEC 62368-1, FCC Class B, CE, Energy Star, RoHS, WEEE, REACH
• Warranty: 3 years standard (US), optional plans up to 5 years
• Notes: Some features/options vary by configuration and region (e.g., warranty terms)
