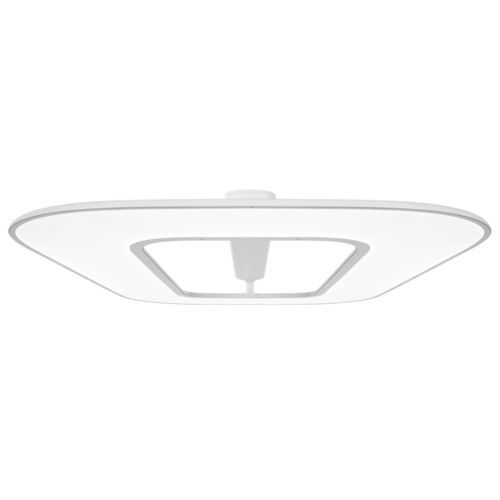

Hospital lighting C209

laboratoryaesthetic medicinefor veterinary clinics

Overview
The Cloud luminaire delivers a lighting solution optimised for clinical and visually demanding medical environments. With high illuminance and accurate colour rendering, it supports precise examination and treatment tasks. Optional integrated colour effects and dynamic daylight simulation can be used for patient comfort or procedural needs. Cloud is designed for larger work zones and can include indirect lighting and a monitor mount for distraction or entertainment where required.

Key product highlights

• Powerful task lighting: 4500 lux (measured at 1.2 m)
• Natural colour rendering: CRI 94
• Ultra-slim profile: 15 mm
• Dynamic lighting: automatic daylight simulation and colour effects (optional)

Technology
Cloud employs microprismatic optics and an engineered light-distribution panel to deliver uniform, glare-controlled illumination across the work surface. An integrated optical light guide and high-efficiency reflectors minimise losses, reduce visible shadows and ensure even colour mixing.

Functional features

• Daylight effect: dynamic warm-to-cool transitions to simulate natural daylight cycles
• Shadow-free lighting: microprismatic optics and structured light guide reduce visible shadows on the work surface
• Indirect lighting: upward-facing indirect light reduces contrast and visual fatigue
• Dimming function: integrated dimmer with remote control to adapt output to task and environment
• Hygienic, slim construction: machined from a single aluminium piece for easy cleaning and efficient cooling

Applications

• Healthcare facilities
• Dentistry
• Beauty care and aesthetic clinics
• Animal care and veterinary clinics
• Laboratories
• Medical and dental technology environments

Options and accessories

• Colour panel with dynamic effects (optional) — creates calming visuals such as drifting clouds or full-spectrum colour displays
• Monitor / TV mount (optional) — standardized mount for screen installation (note: colour panel and monitor mount cannot be combined)
• Indirect lighting (option)
• Dynamic lighting (automatic) (option)
• Included: dimmer with remote control

Other product properties
Solid aluminium construction provides mechanical stability, integrated cooling and simplified cleaning. The luminaire contains over one thousand high-efficiency LEDs and reflectors optimised to return more than 98% of the light, maximising output and reducing losses. The large, evenly illuminated surface reduces glare and improves patient comfort during examinations and treatments.

Technical specifications

• Product: C209
• Light source: LED 209 – 290 W
• Illuminance: 4500 lux / 1.2 m
• Colour temperature: 3000 – 5700 K, CRI 94
• Dimensions: 1282 x 850 x 15 mm
• Profile height: 15 mm
• Weight: 20 kg
• Rating: IP20
• Included: Dimmer with remote control
• Options: Indirect lighting; Dynamic lighting (automatic); Colour panel*; Monitor mount* (*Colour panel and monitor mount cannot be combined)
• LEDs: 1,023 LEDs; Cree high-efficiency LEDs with up to 165 lumens per watt at CRI >94
• Reflectors: high-efficiency reflectors returning more than 98% of the light
• Optics: microprismatic technology and structured optical panel for uniform light and colour distribution
